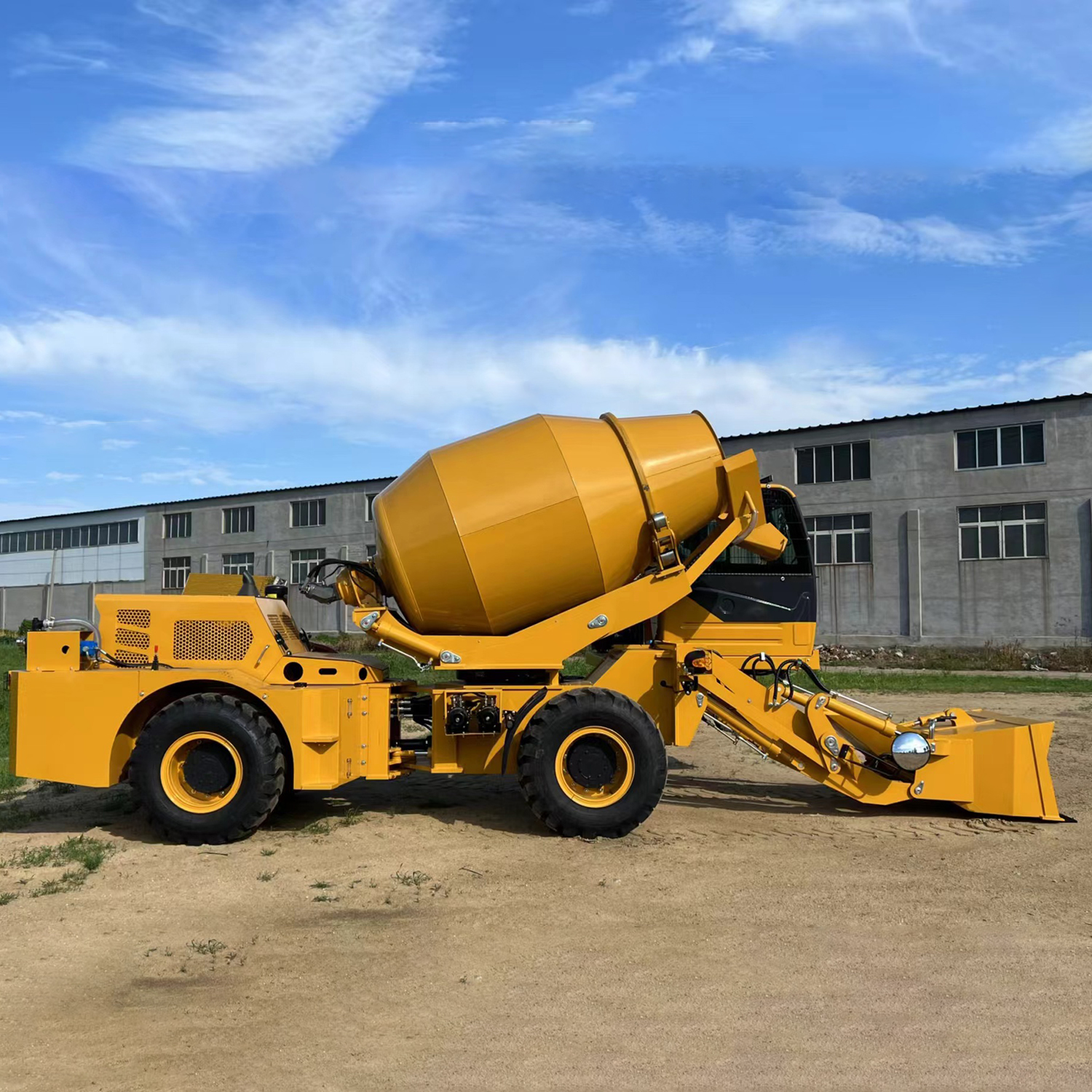

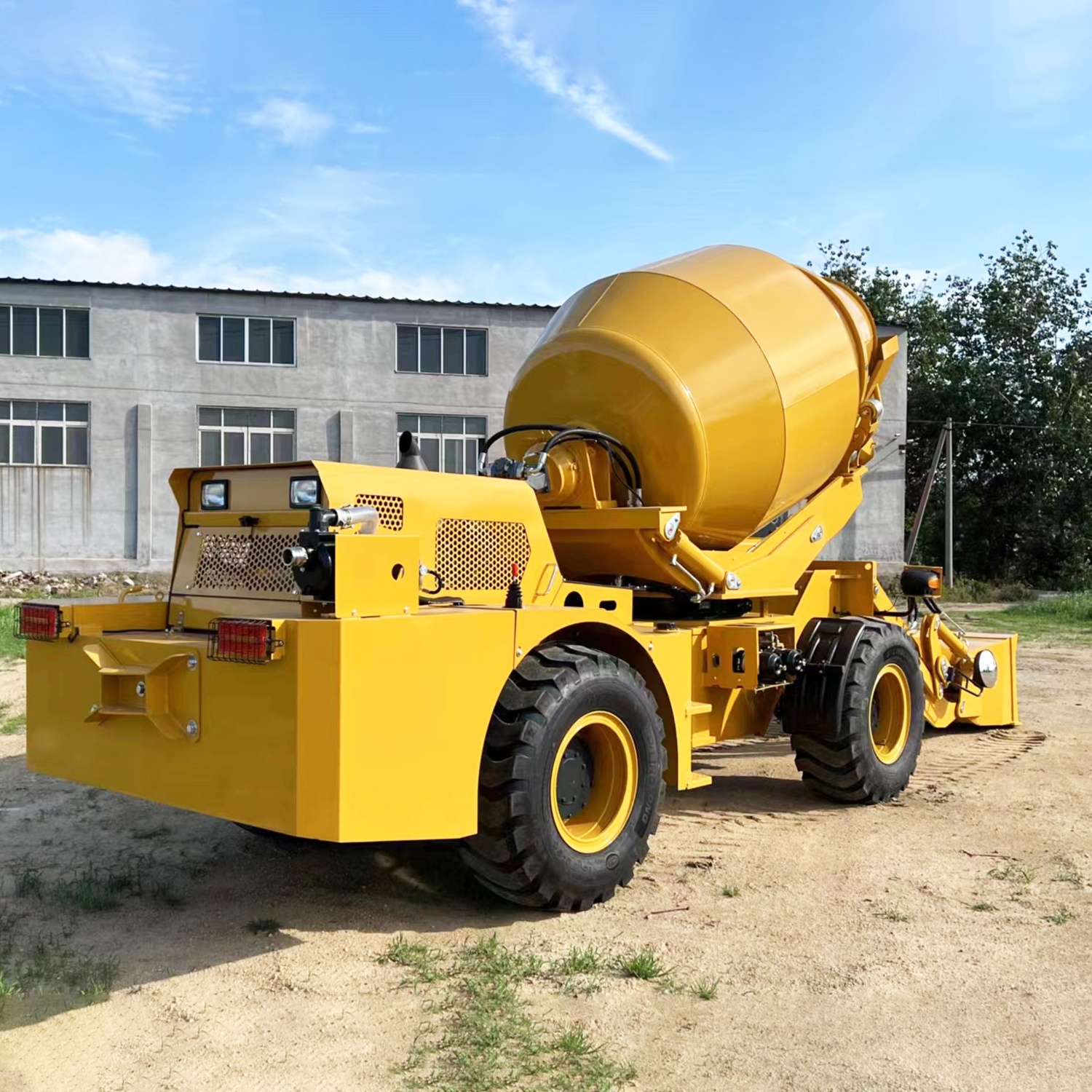

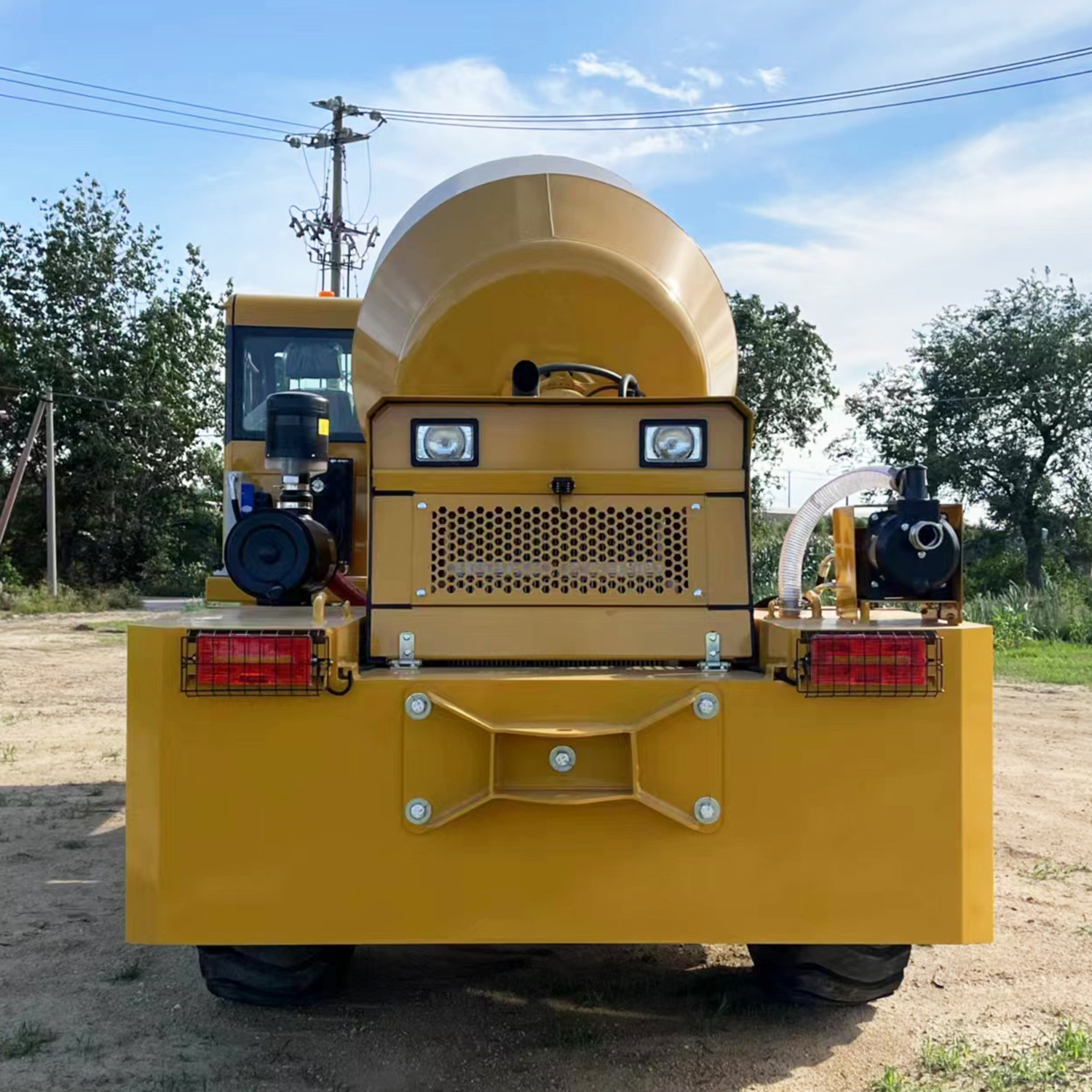

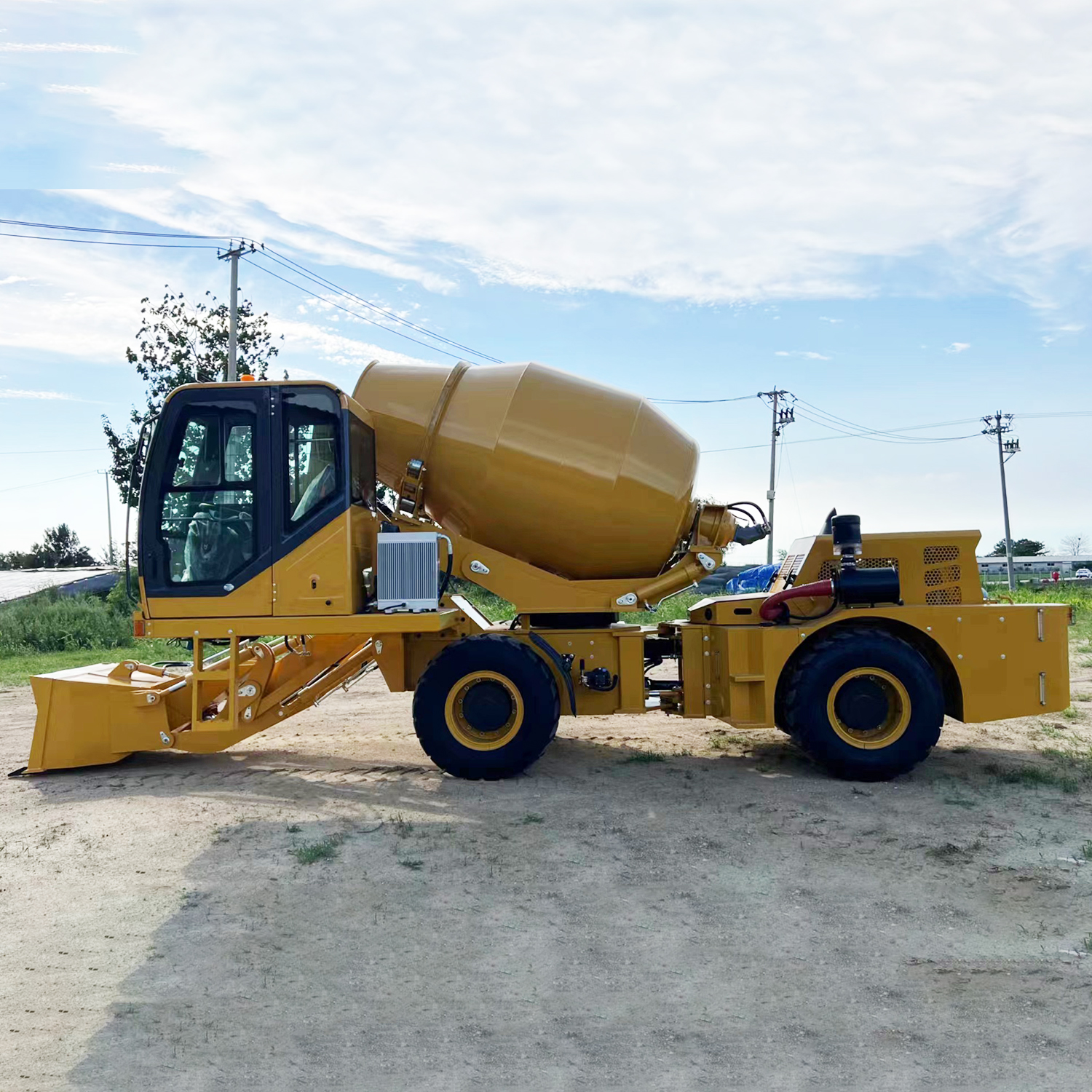

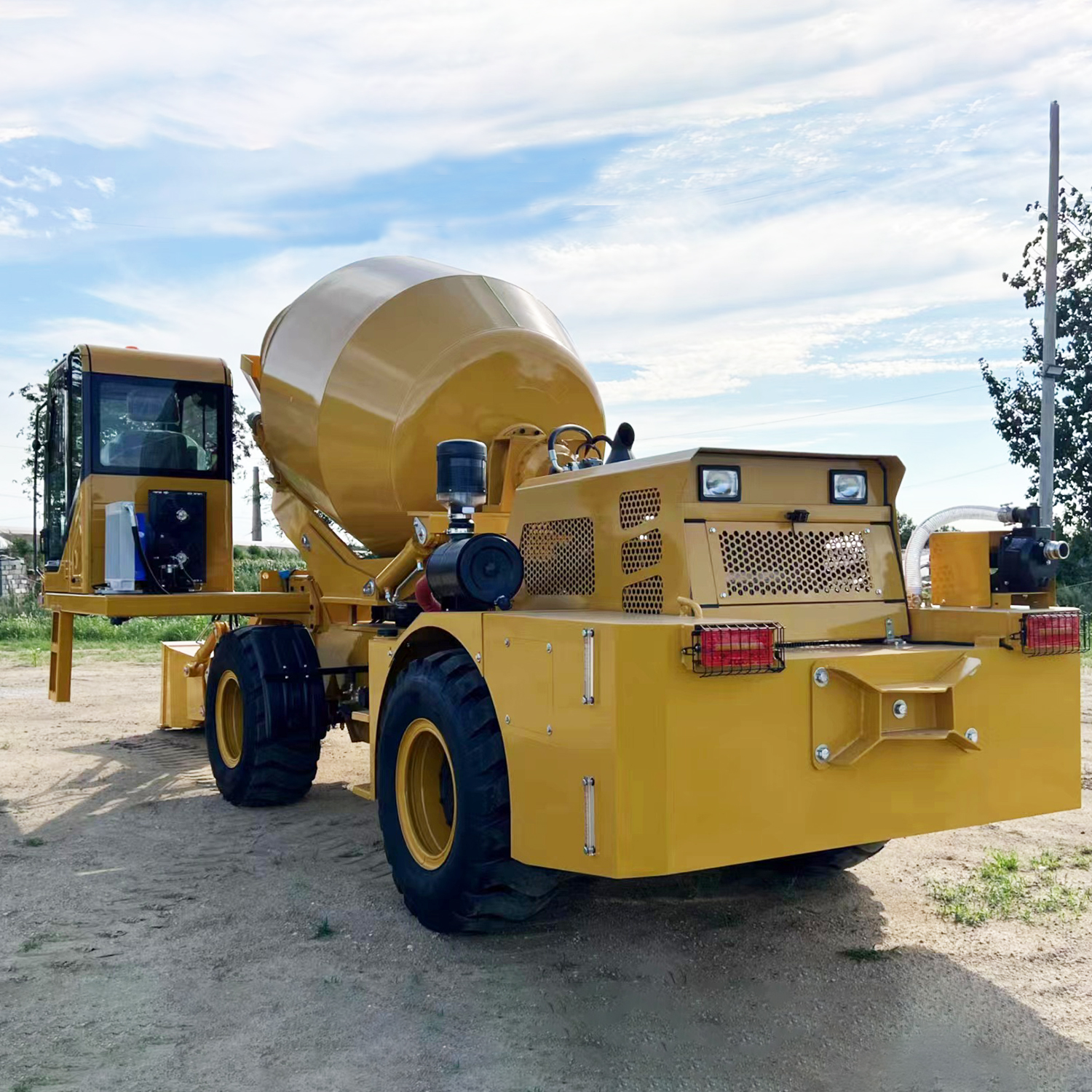

4m³Self loading concrete mixer truck

Output per lot: 4.0 cubic metres

Drum rotation: Discharge Port Height 2 meters, cab and tank horizontal rotation 270 tank can be raised and lowered

CAPACITY: Up to 4.5 batches per hour, 18 cubic hours

ENGINE: Yuchai power ycd4j22t 125, diesel, water-cooled, 4 cylinders, 2600 RPM, rated power 91KW

Transmission Mode: The engine is directly connected to the 280 split Torque converter, and is connected to the gearbox with double high and low speed through the transmission shaft to realize four-wheel drive

CLIMBING: 40 turn

SPEED: dual altitude, low speed 0-25kph, high speed0-40 kph

Driver's seat: Widen the luxurious cab of the excavator, front window can be opened, anti-roll, anti-falling object type, double armrest cushion seat

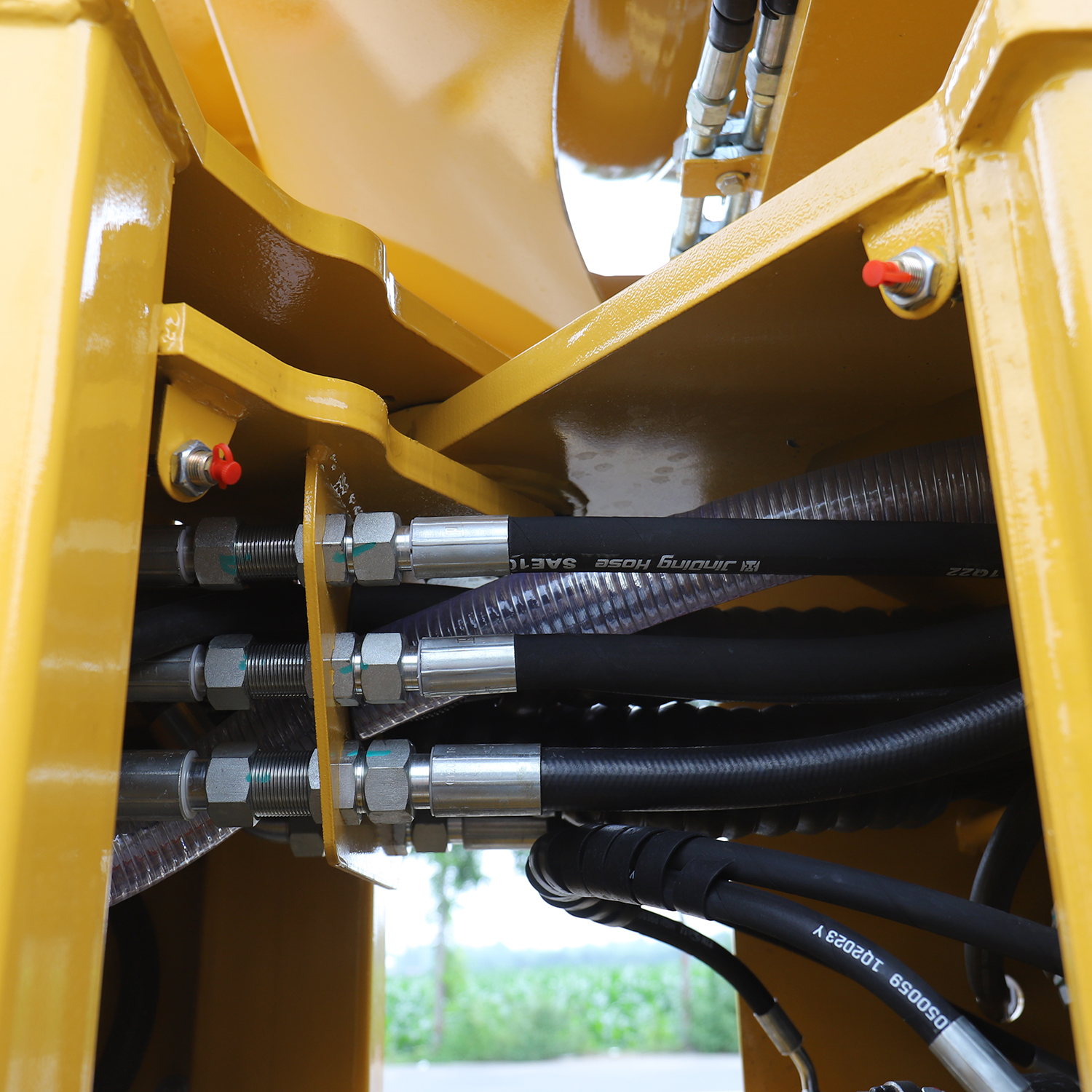

Hydraulic system: Open oil inlet, axial piston motor, two gear pumps to participate in the work

JOYSTICK: Two hydraulic pilot joysticks control the scoop, upper arm, 270 turn, lift tank

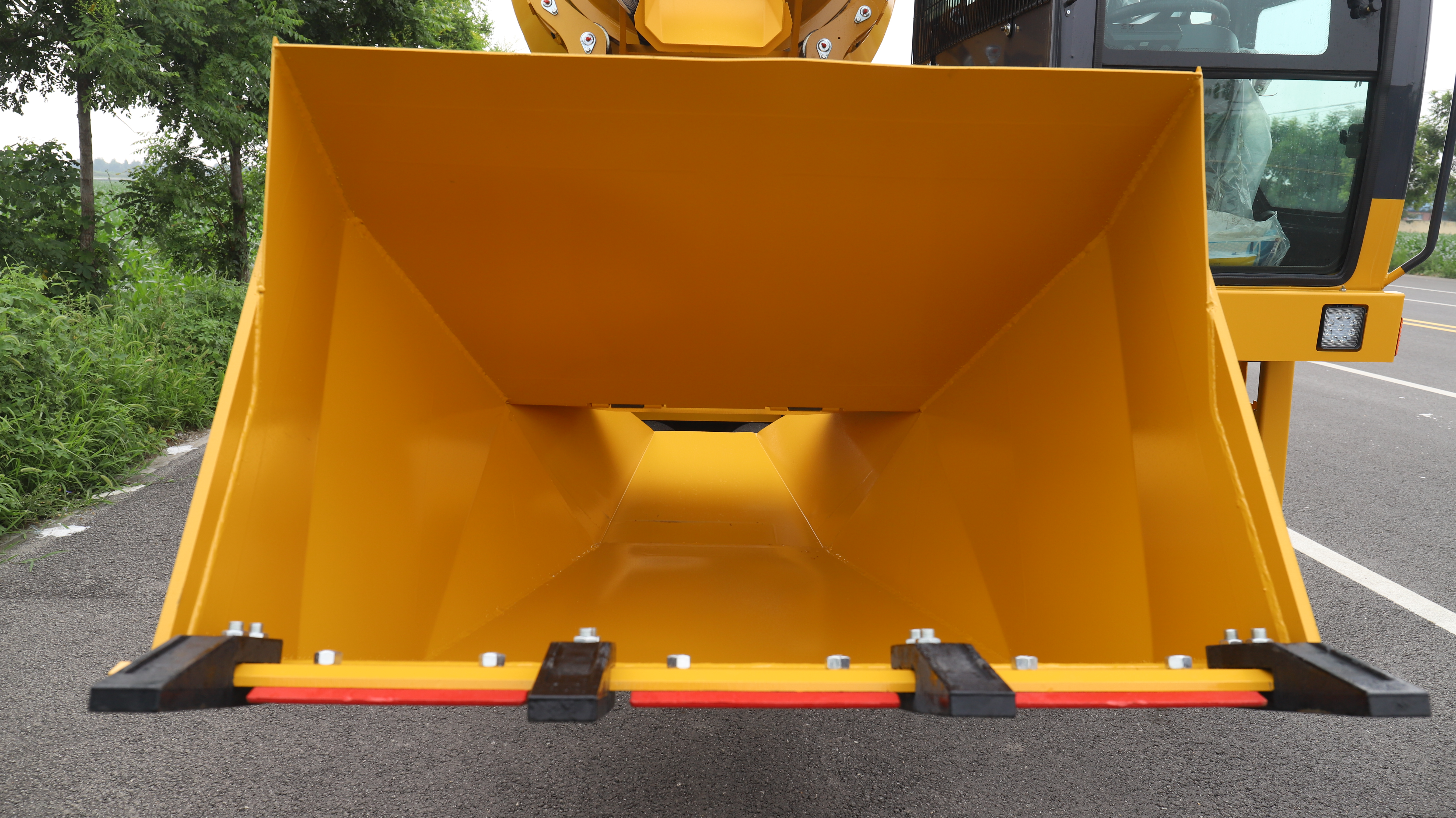

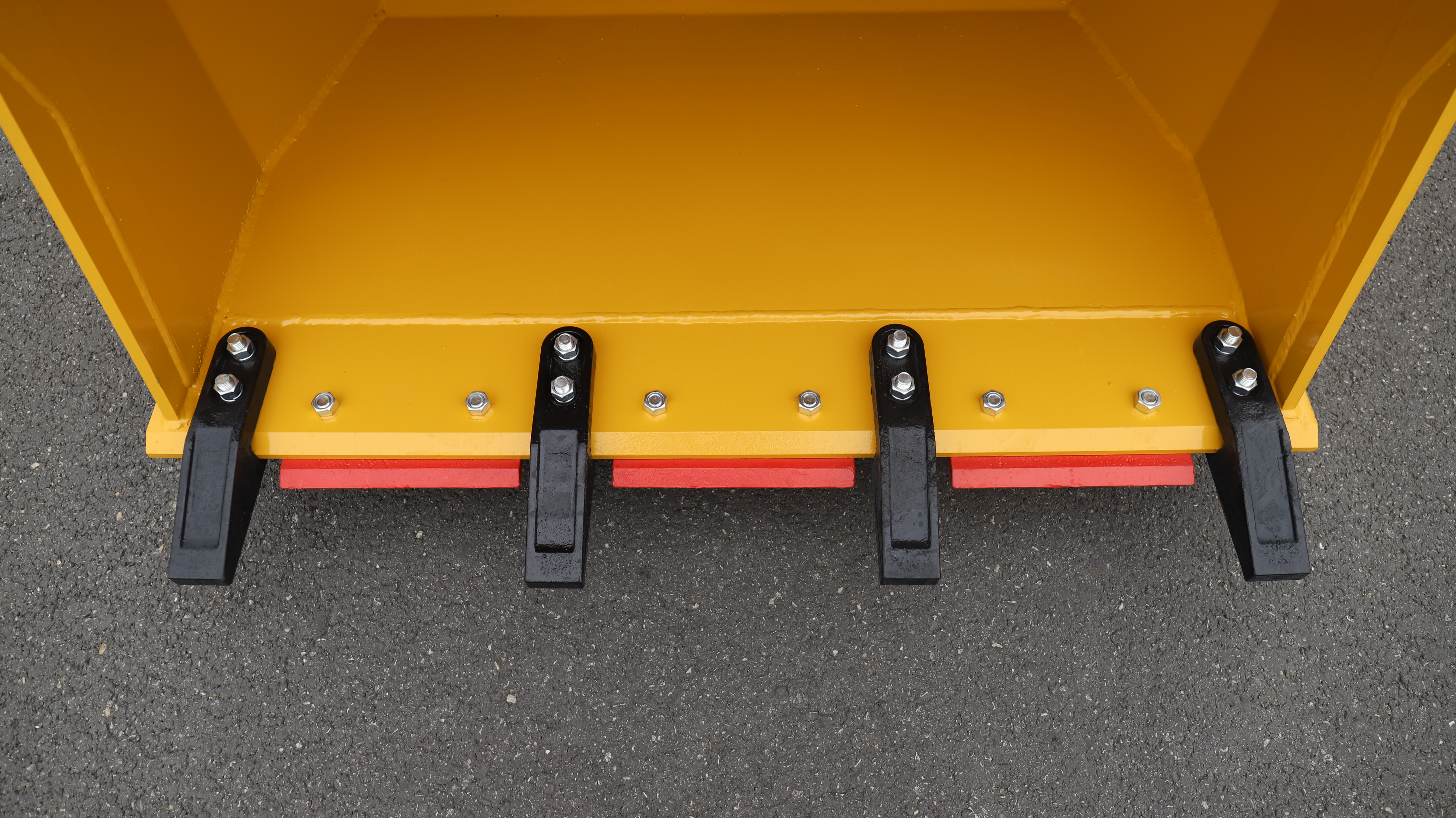

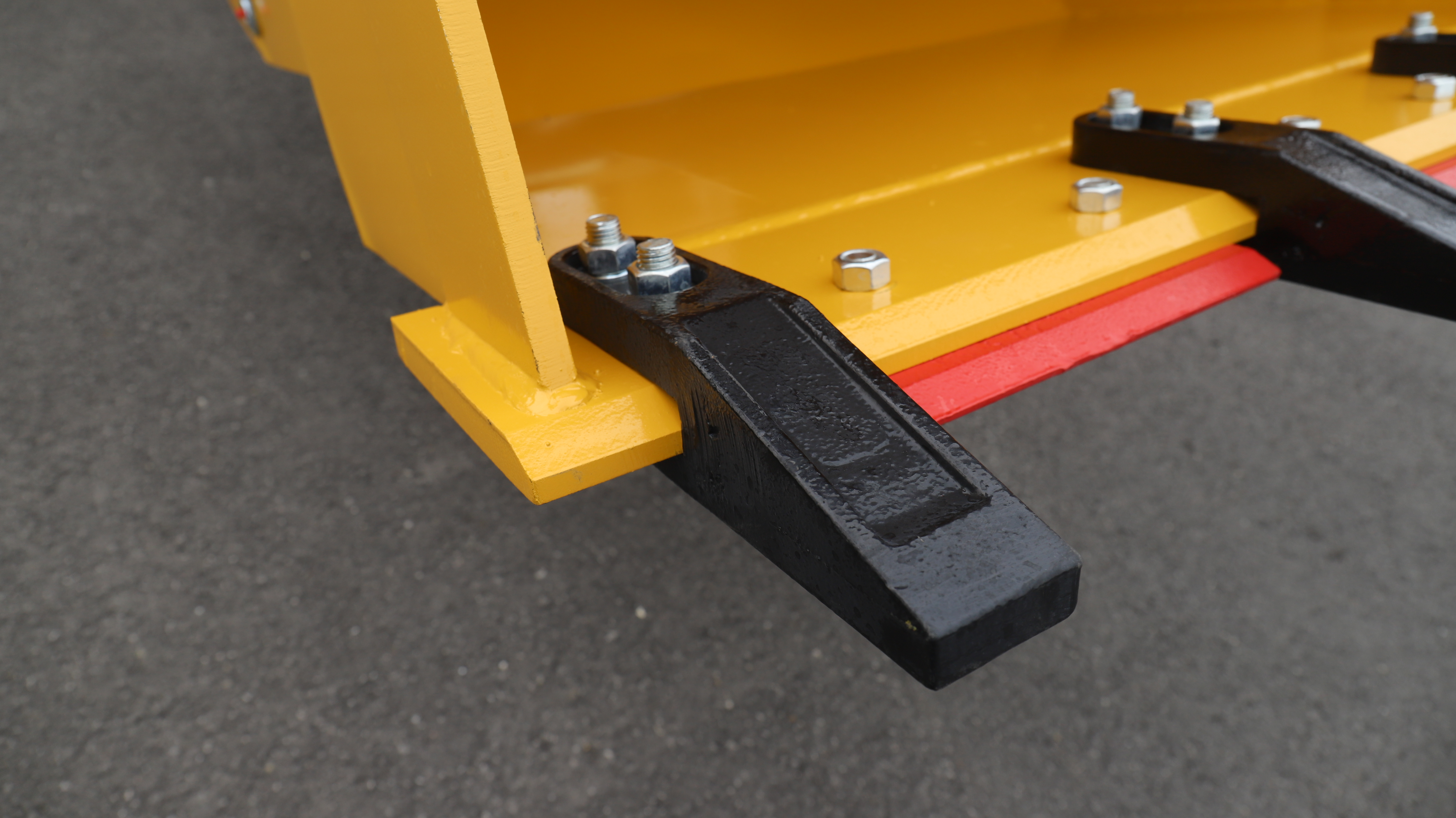

Bucket: 0.7 cubic, hydraulic gate

Clay Groove: equipped with two 150CM Removable Chute to increase the length of discharge

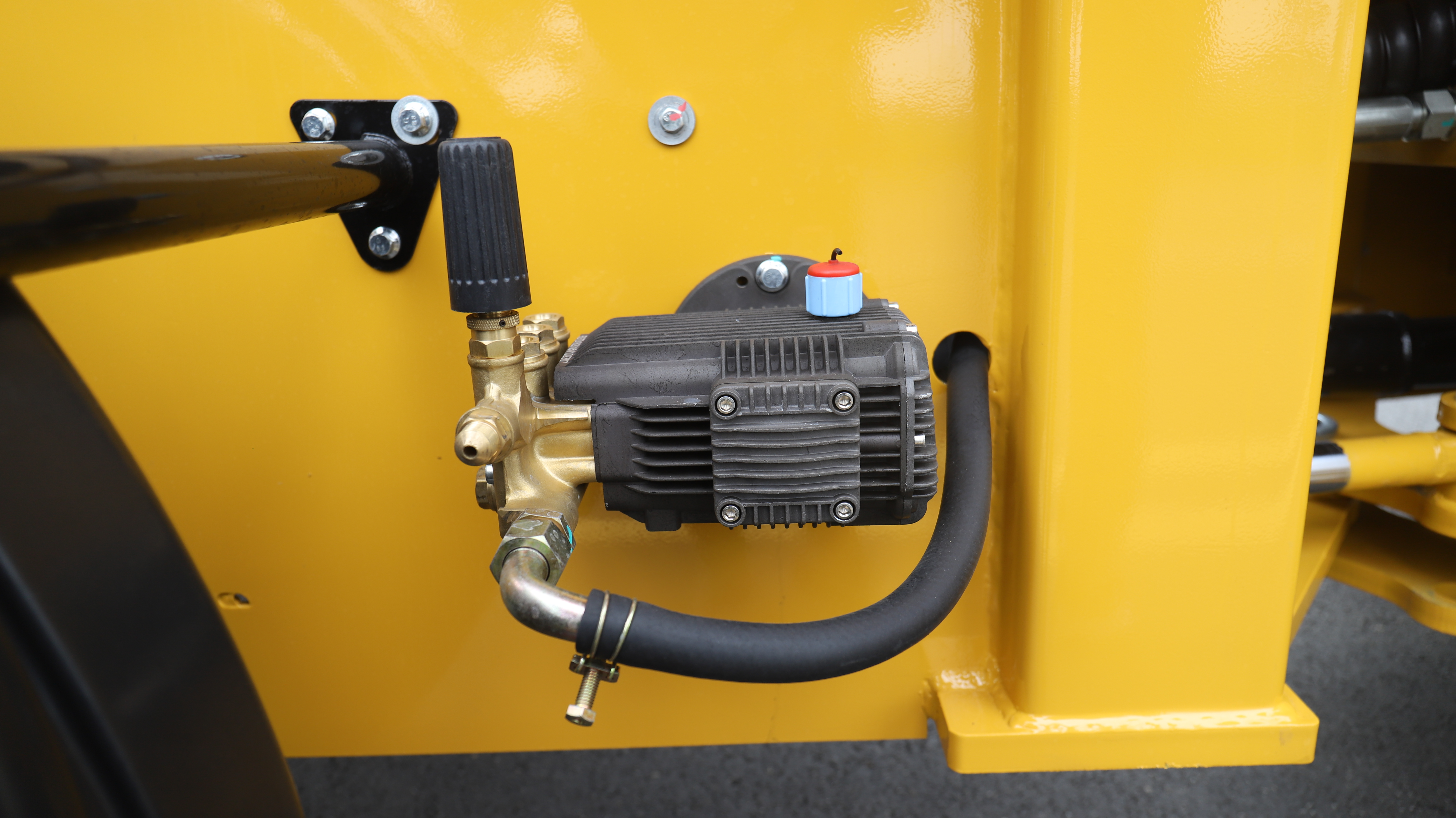

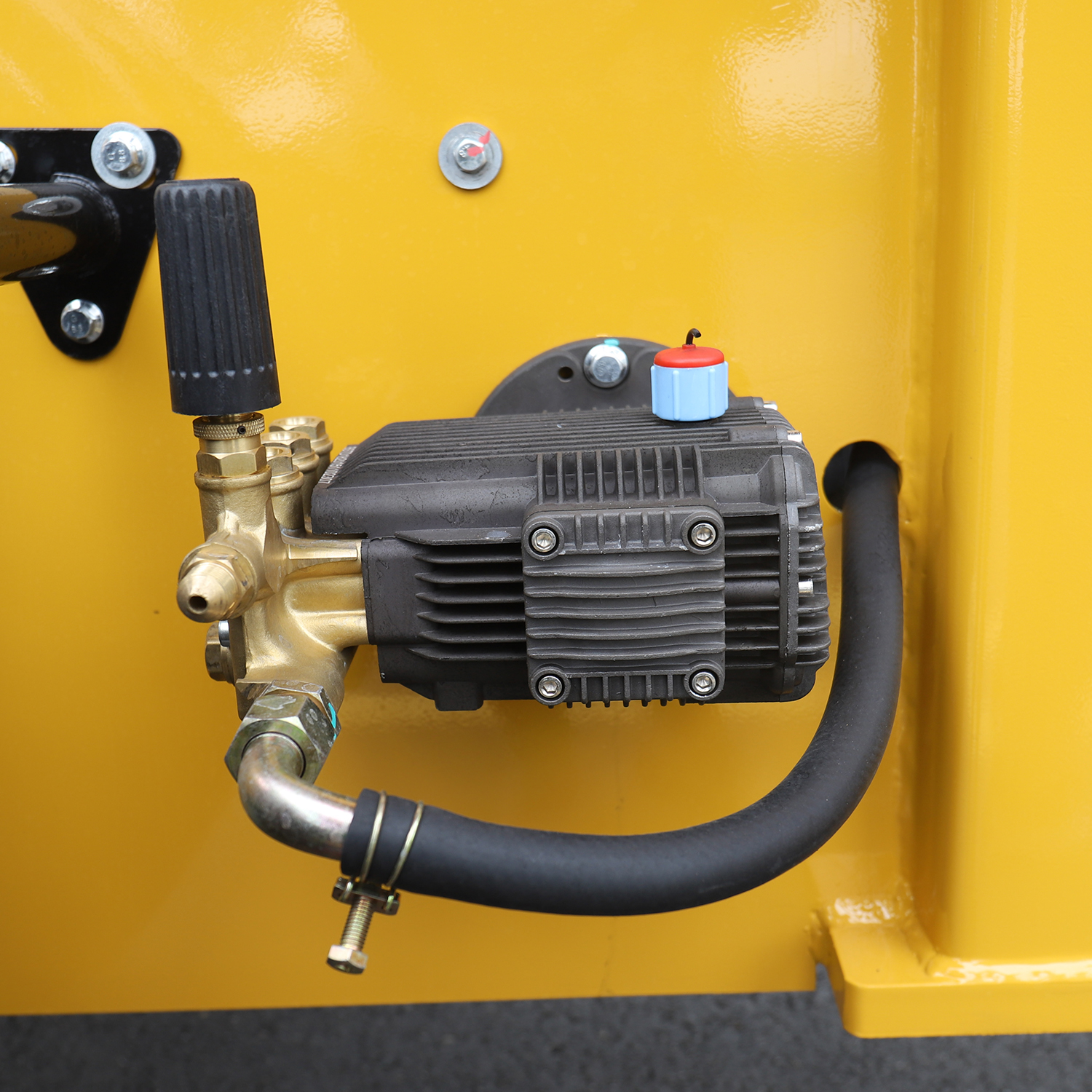

Water Supply System: self-priming driven pump, 24V self-timing Centrifugal pump, car washing machine

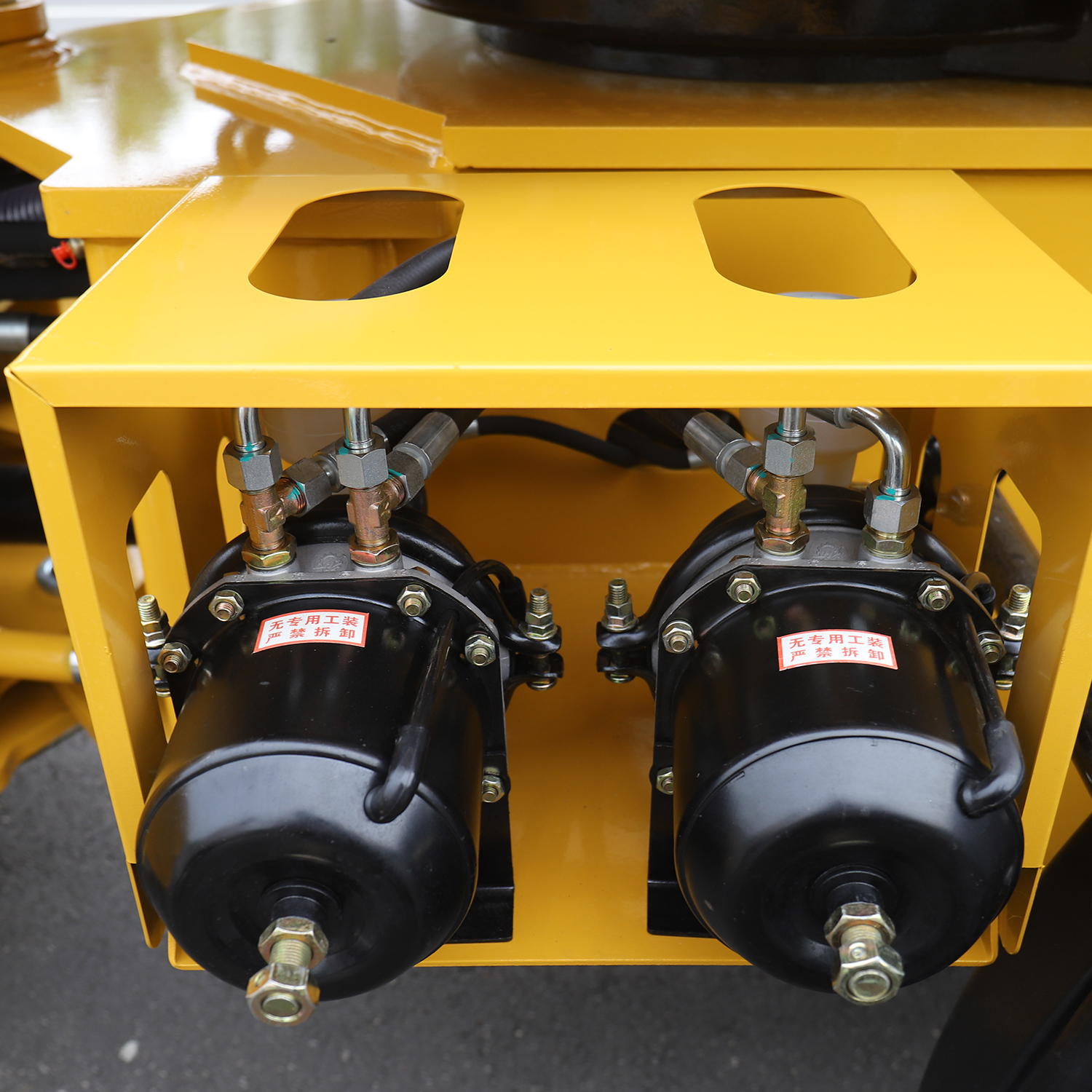

BRAKE: Use Small Servo pump on independent double circuit, use single wheel 4-piston plus double brake caliper

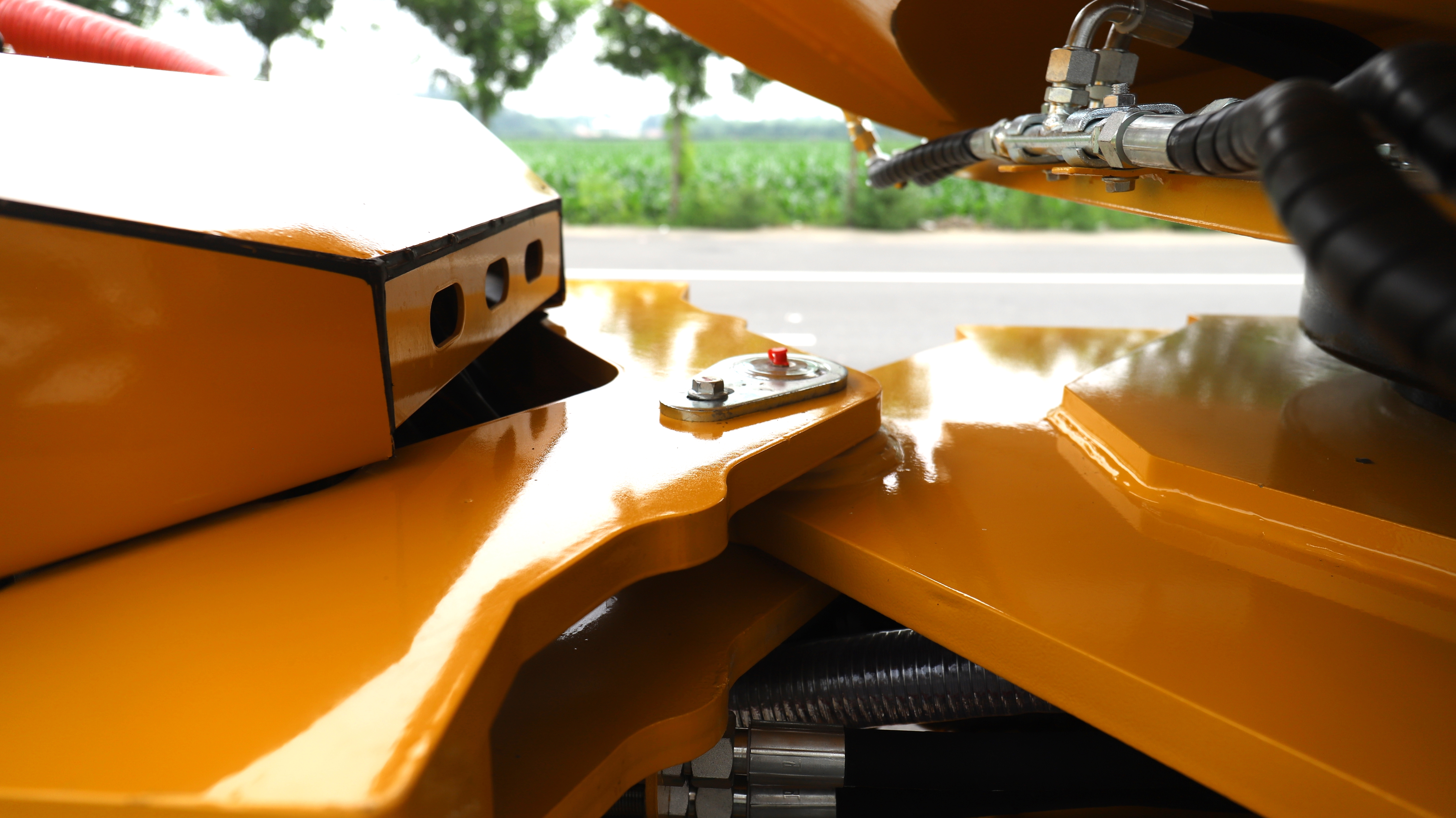

Steering: Hydraulic articulated steering

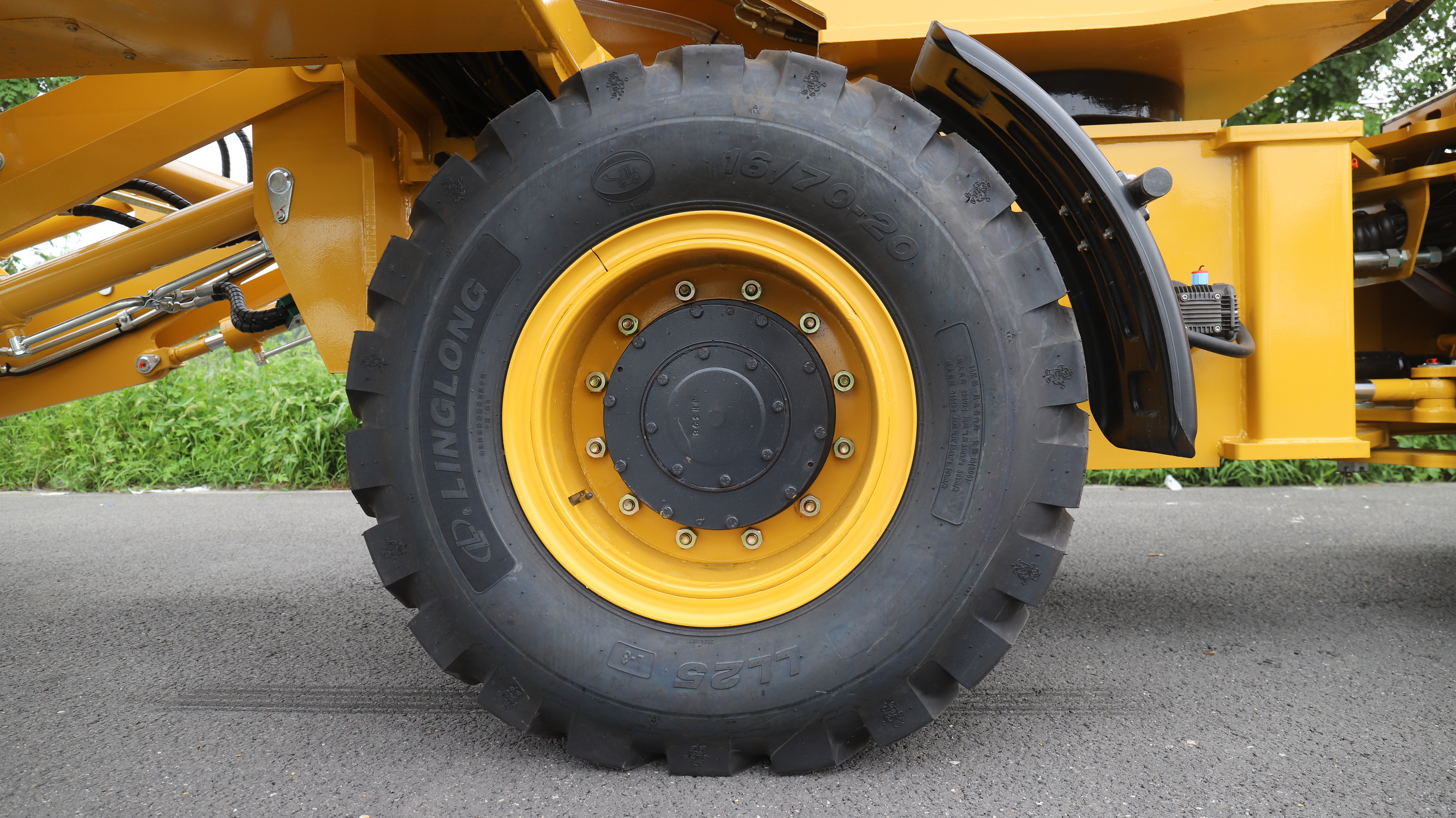

TIRE: 12R-22.5 steel wire high pressure vacuum tire

Power System: 24V

Fuel tank / Water tank: 1 * 800 litres water tank, 135 litres diesel fuel tank, 135 litres hydraulic fuel tank

Weight: 9,000 kg

Length, width, height / wheelbase / Wheelbase: 7600mm * 2950mm * 3400mm * 3000mm * 2150mm

Turning radius: 3000 mm
