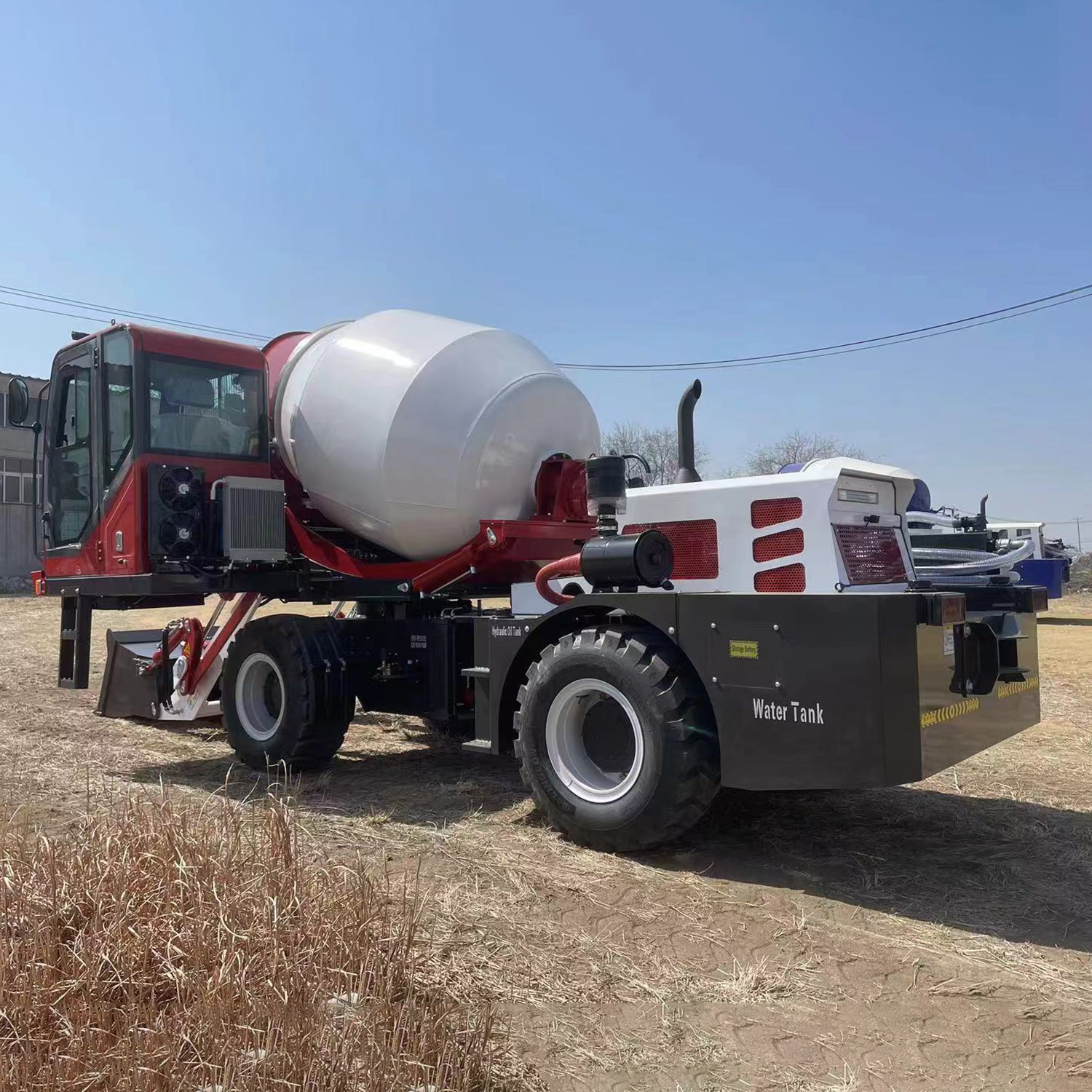

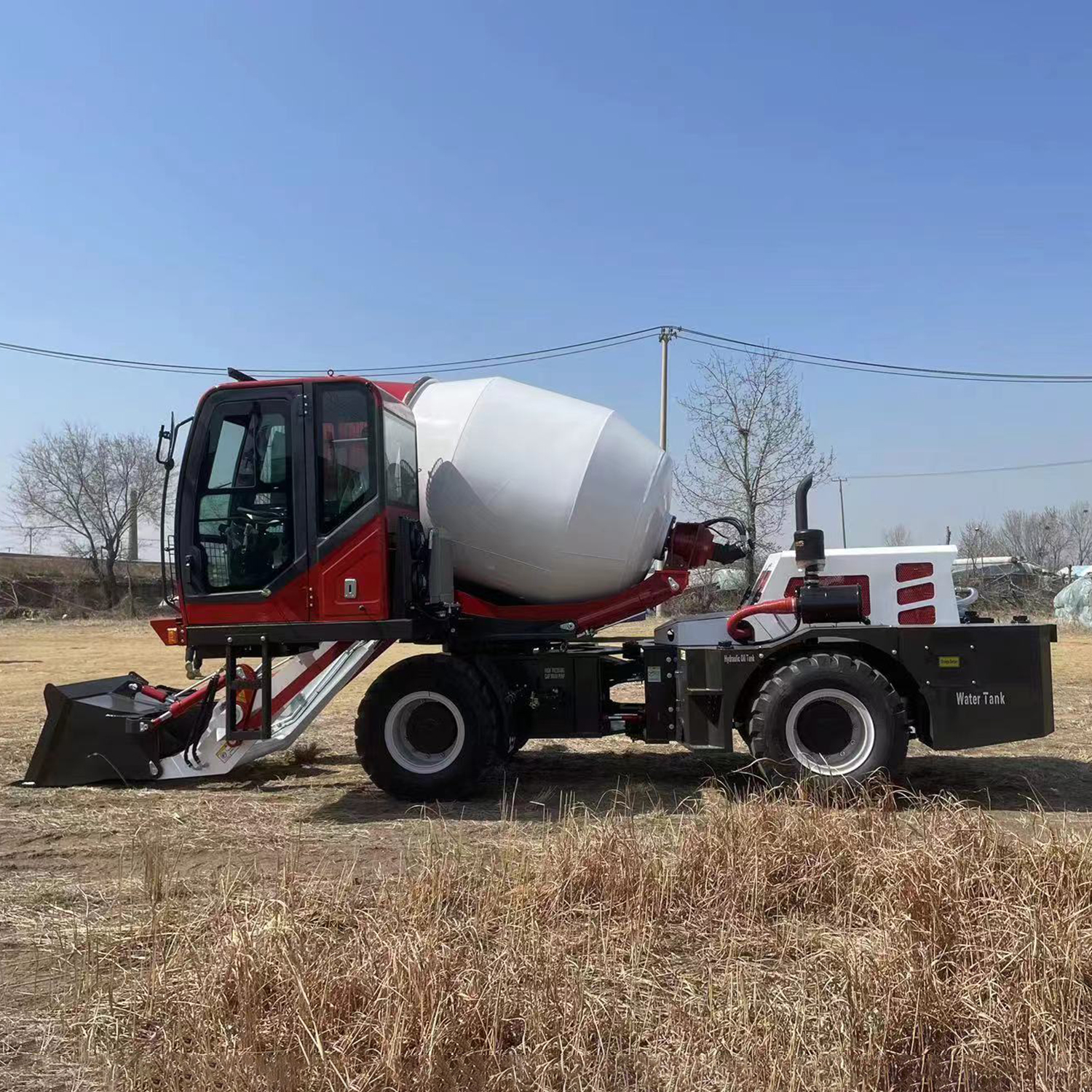

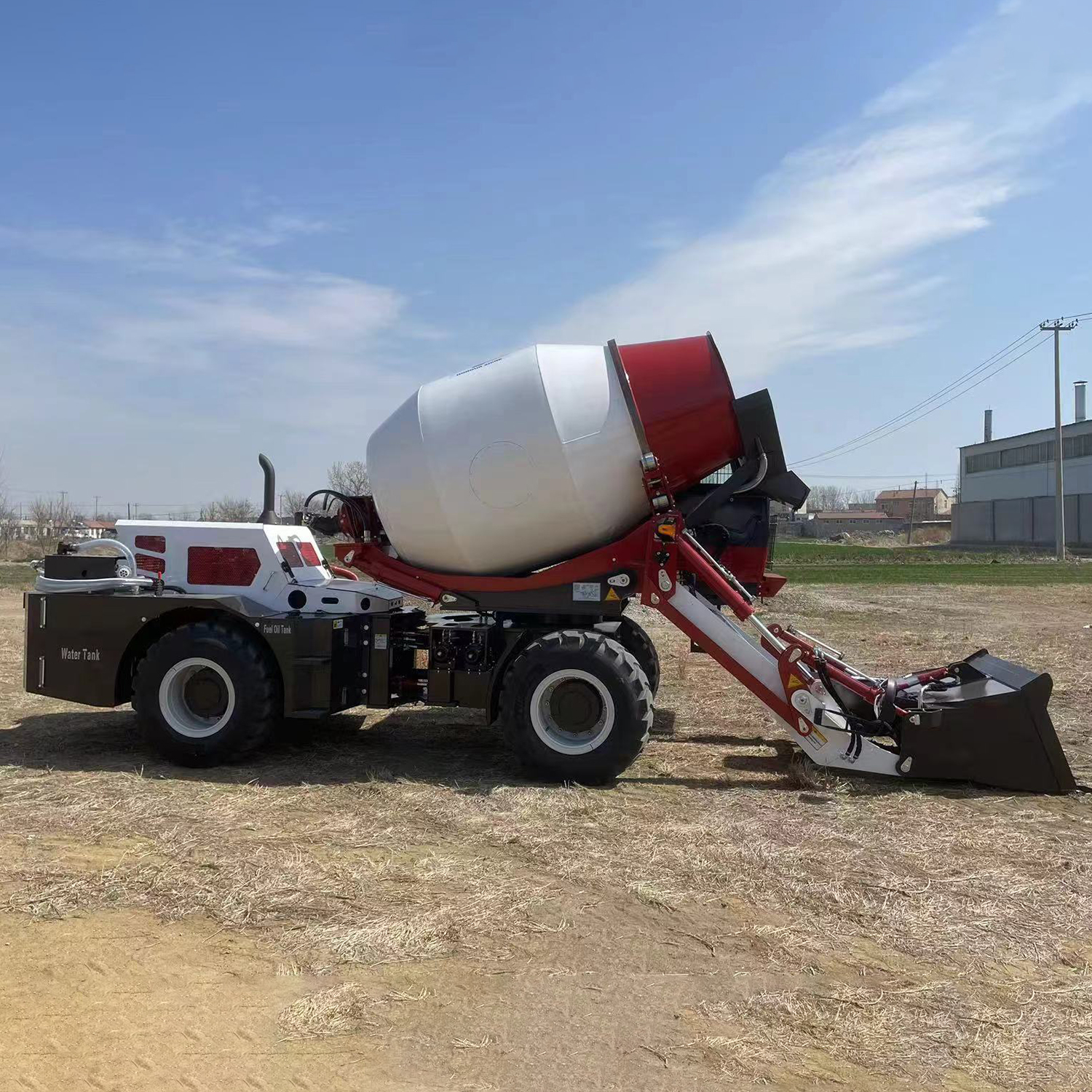

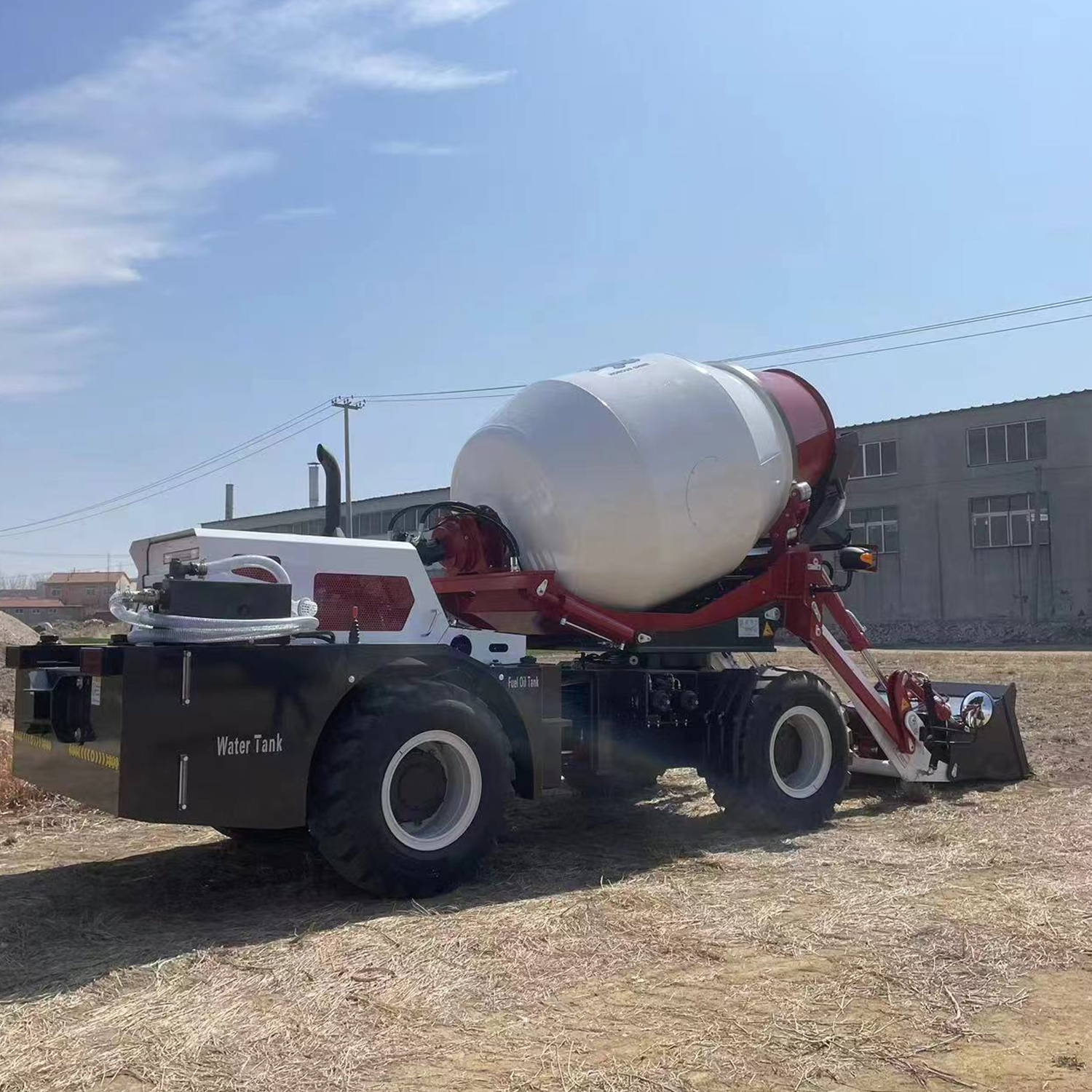

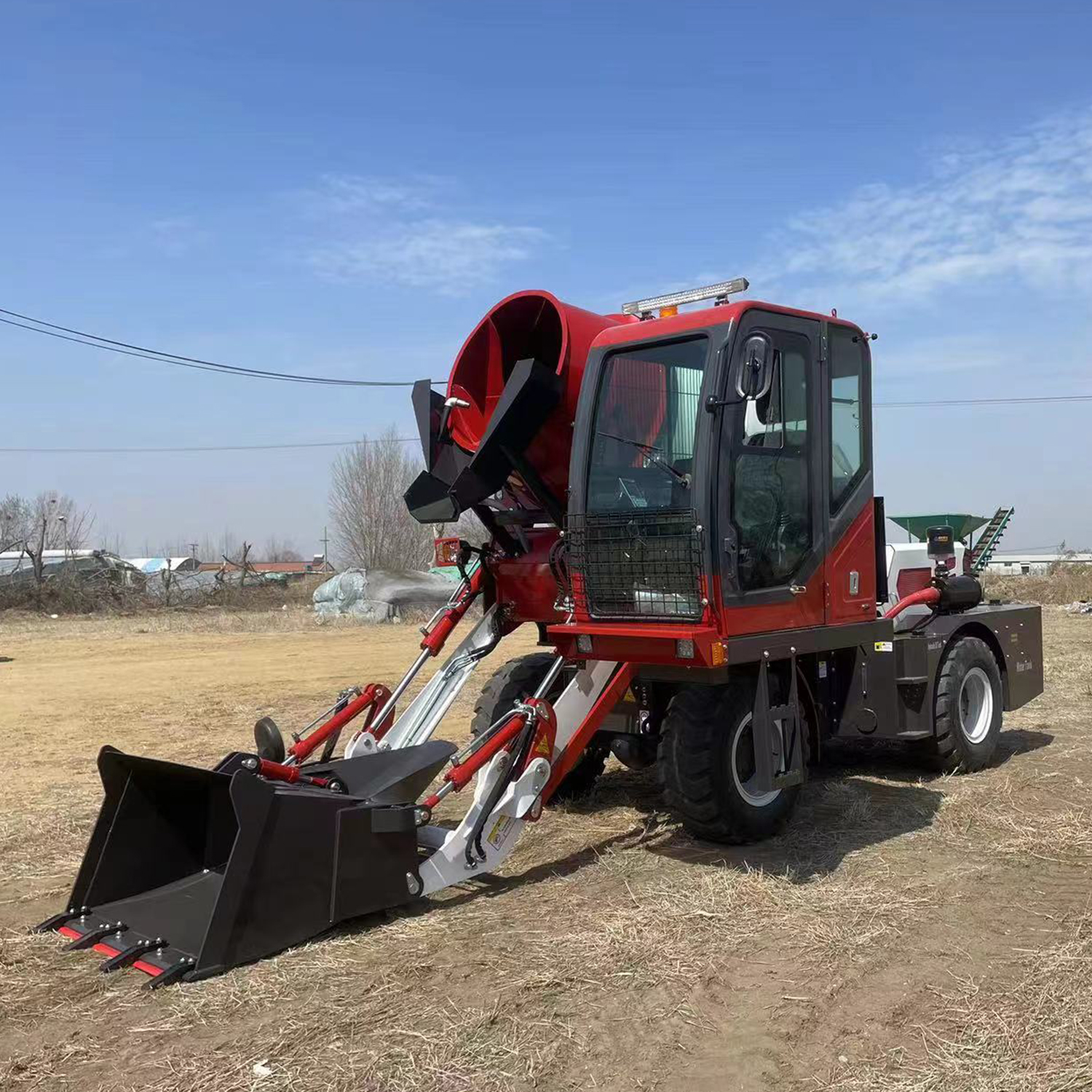

3.5m³ self loading Concrete mixer truck

Collect
  • Description

Output per lot: 3.5 cubic metres

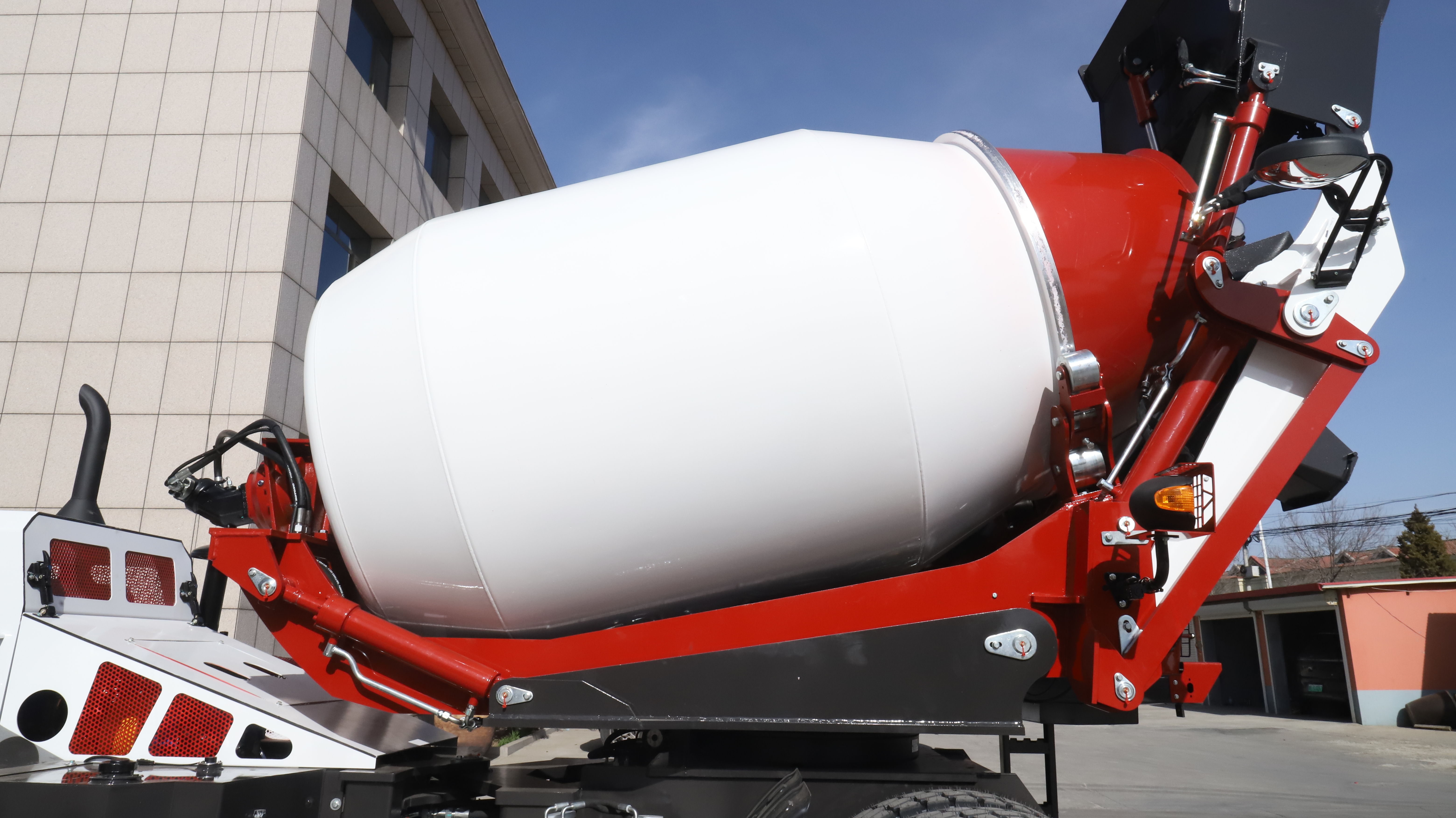

Drum rotation: discharge port height 1.8 meters, cab and tank horizontal rotation 270 tank can be raised and lowered

CAPACITY: Up to 4.5 batches per hour, 15.5 cubic hours

ENGINE: Yuchai Power Ycd4j22t Foshan 16, diesel, water-cooled, 4 cylinders, 2600 RPM, rated power 85KW

Drive mode: The engine is directly connected to the 280 torque converter, through the drive shaft to the transmission with dual high and low speed through the drive shaft connected to the front and rear axles to achieve 4-wheel drive

CLIMB: 40 degrees

SPEED: dual altitude, low speed 0-25 kph, high speed 0-40kph

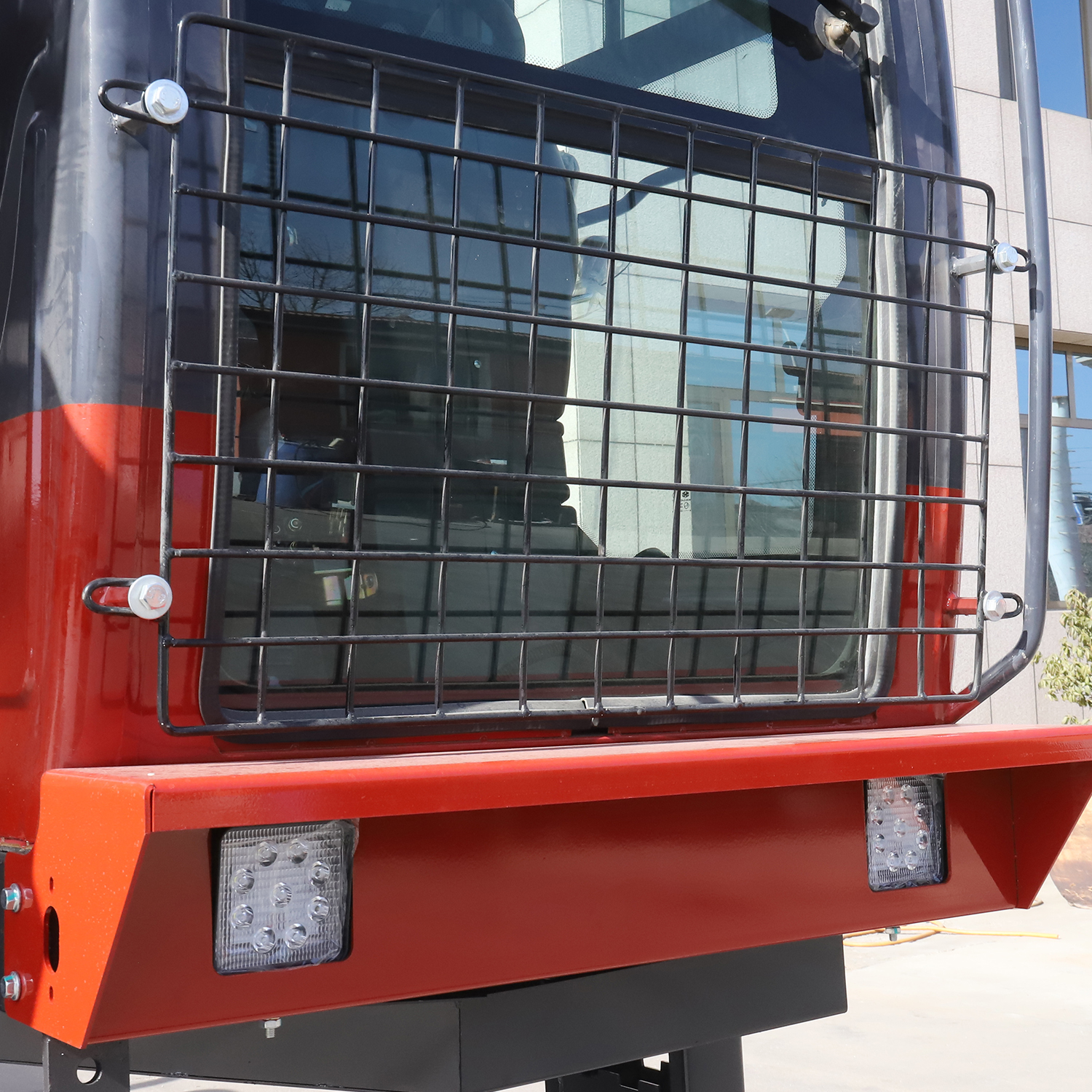

Driver's seat: Widen the luxurious cab of the excavator, front window can be opened, anti-roll, anti-falling object type, double armrest cushion seat

HYDRAULIC SYSTEM: Open type oil, plunger type motor, two gear pumps to participate in the work

JOYSTICK: Two hydraulic pilot joysticks control the scoop, upper arm, 270 turn, lift tank

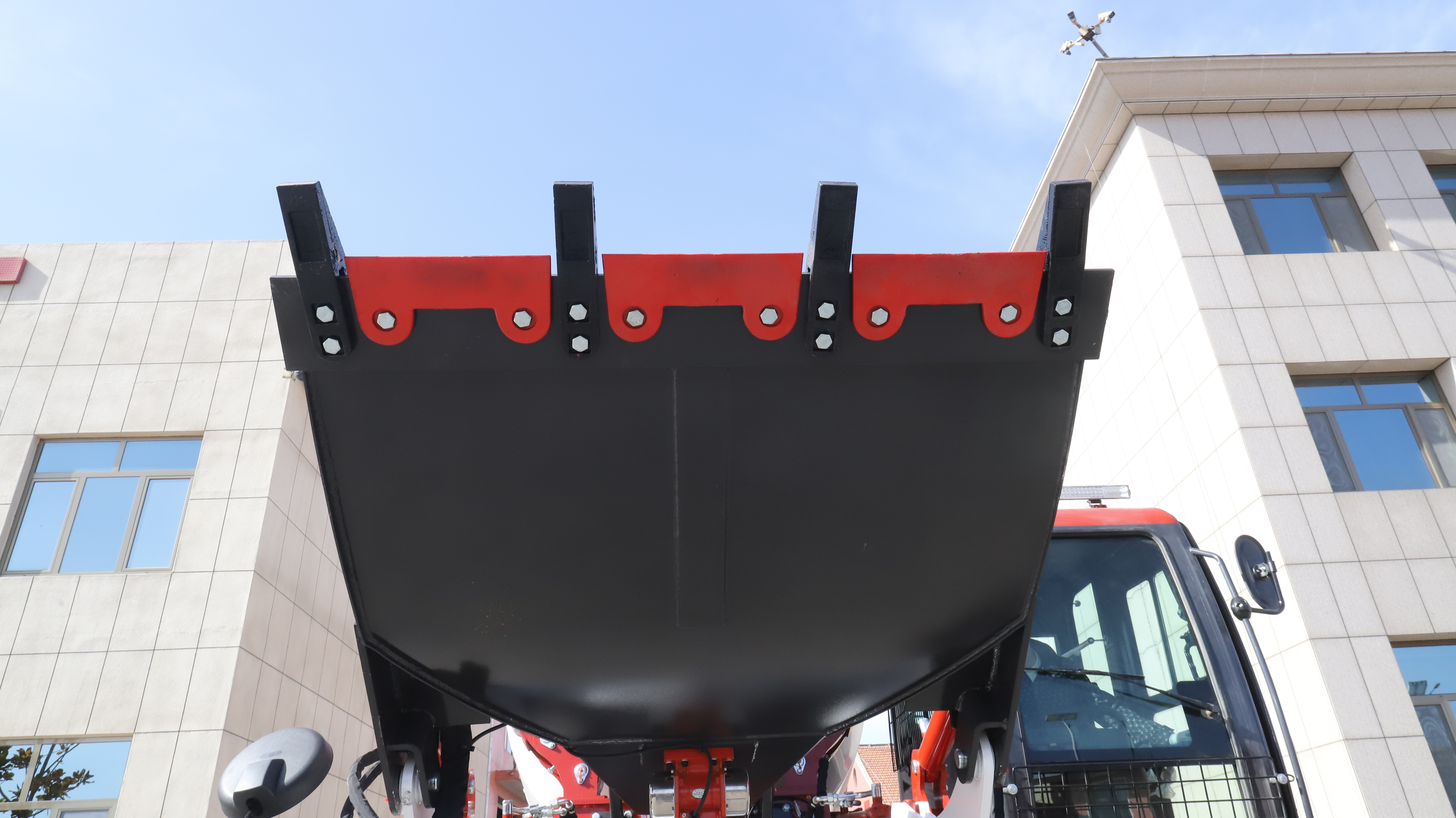

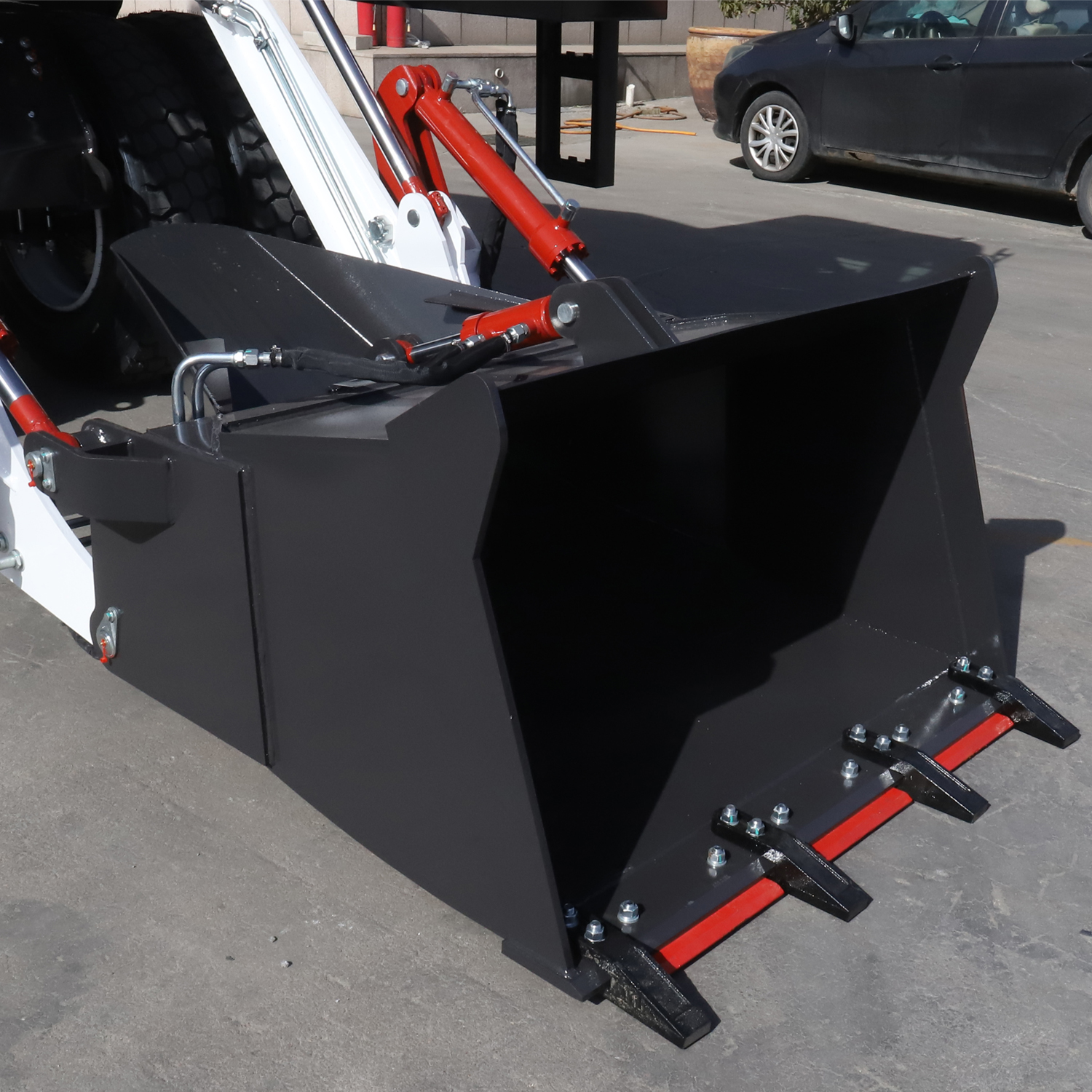

Bucket: 0.65 cubic, hydraulic gate

Clay Groove: equipped with one 150CM Removable Chute to increase the length of discharge

Water Supply System: self-priming driven pump, 24V self-timing Centrifugal pump, 24V car wash machine

BRAKE: Use Small Servo pump on independent double circuit, use single wheel 4-piston plus double brake caliper

Steering: Hydraulic articulated steering

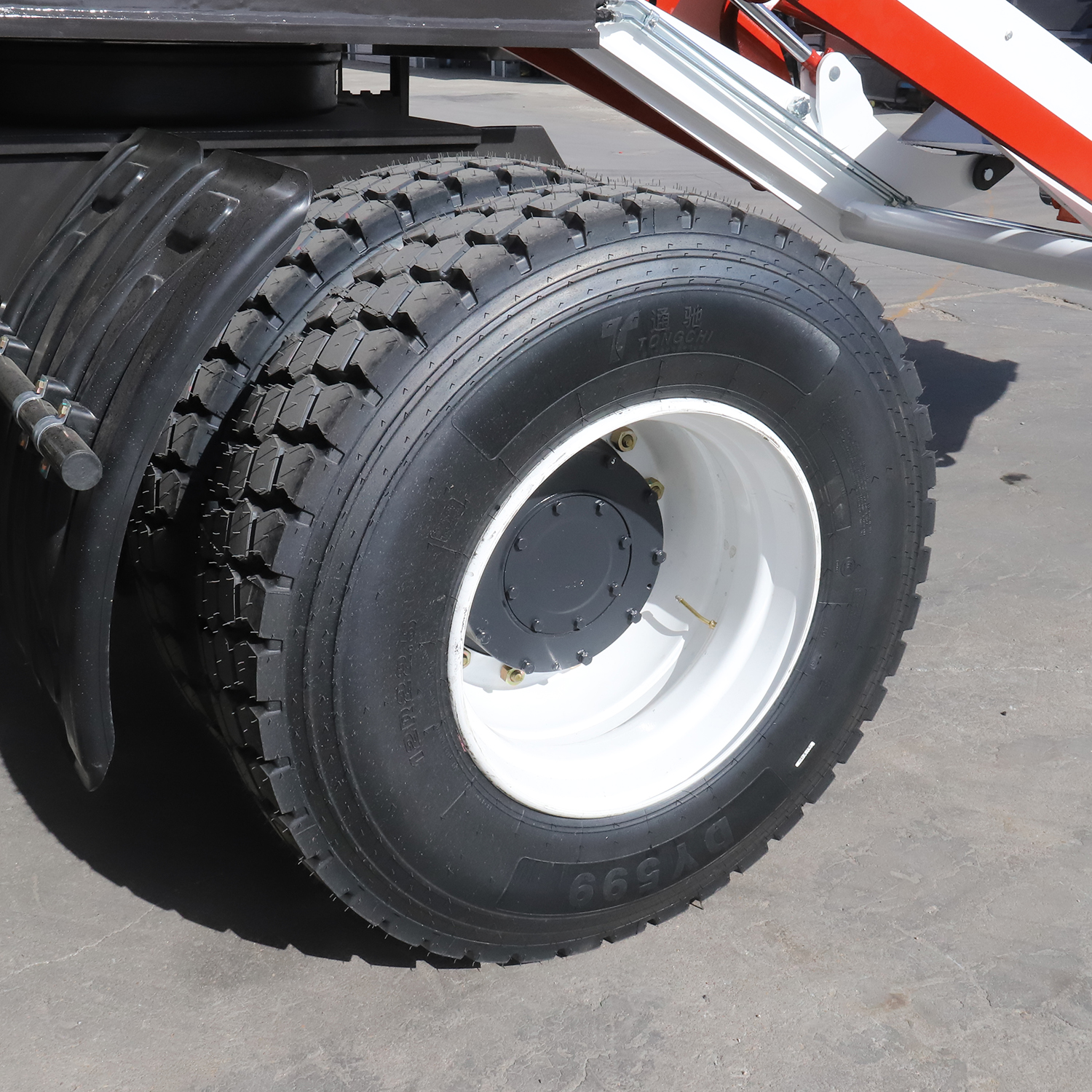

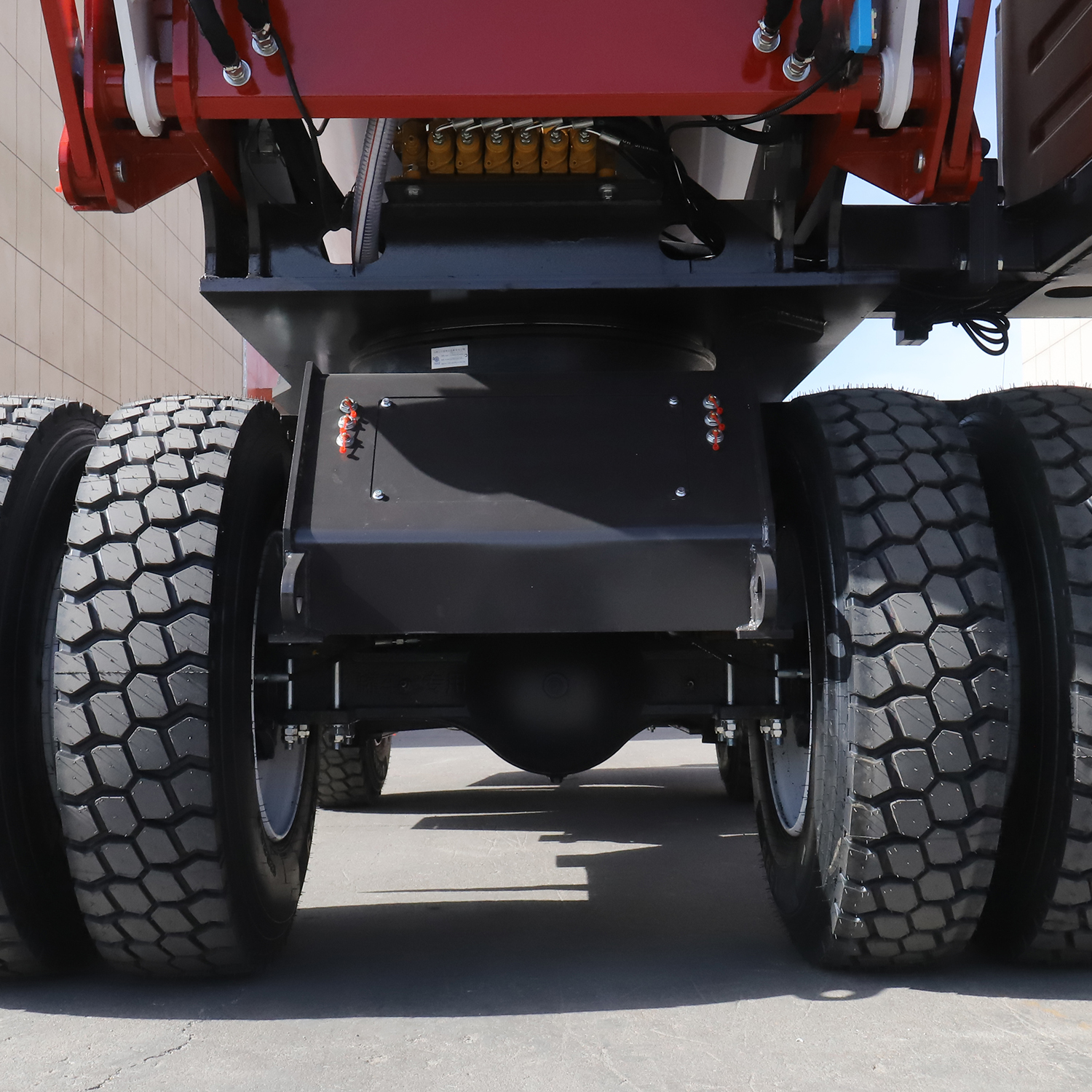

TIRE: 12R-22.5 steel wire high pressure vacuum tire

Power System: 24V

Fuel tank / Water tank: 1 * 800 l water tank, 130 l diesel fuel tank, 130 l hydraulic fuel tank

Weight: 8,100 kg

Length, width, height / wheelbase / Wheelbase: 7100mm * 2750mm * 3300mm * 2700mm * 2200mm

Turning radius: 2,900 mm
