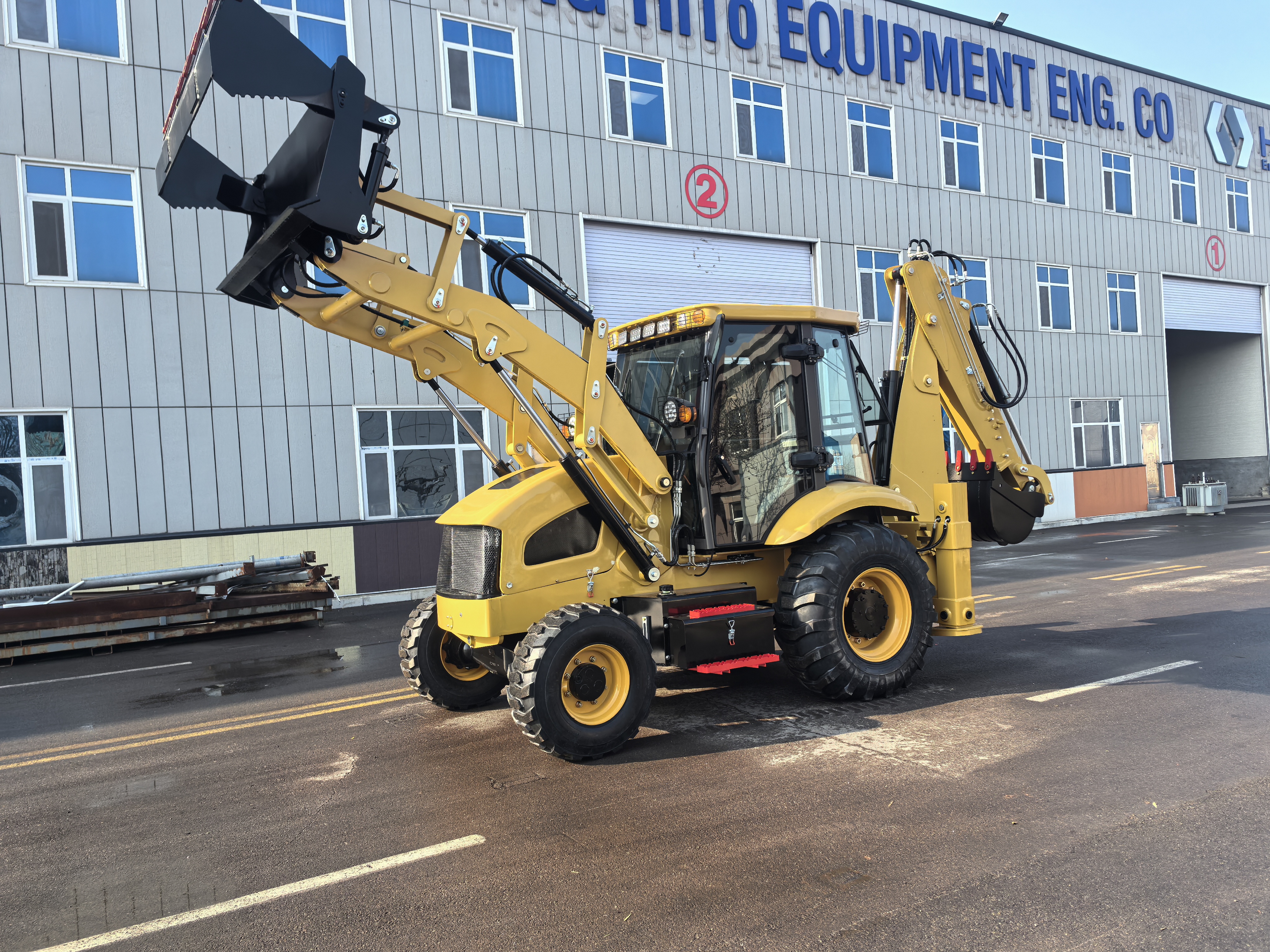

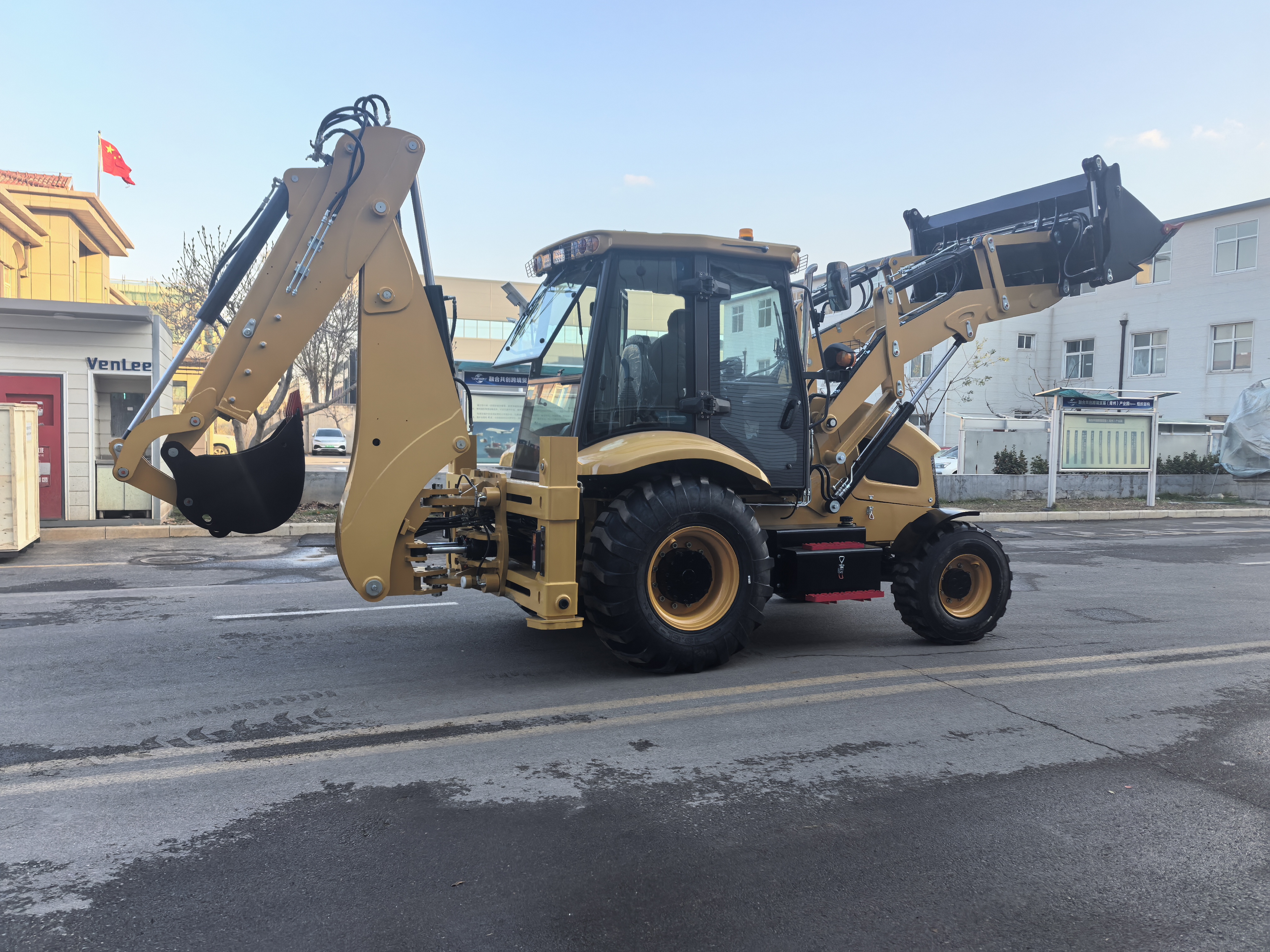

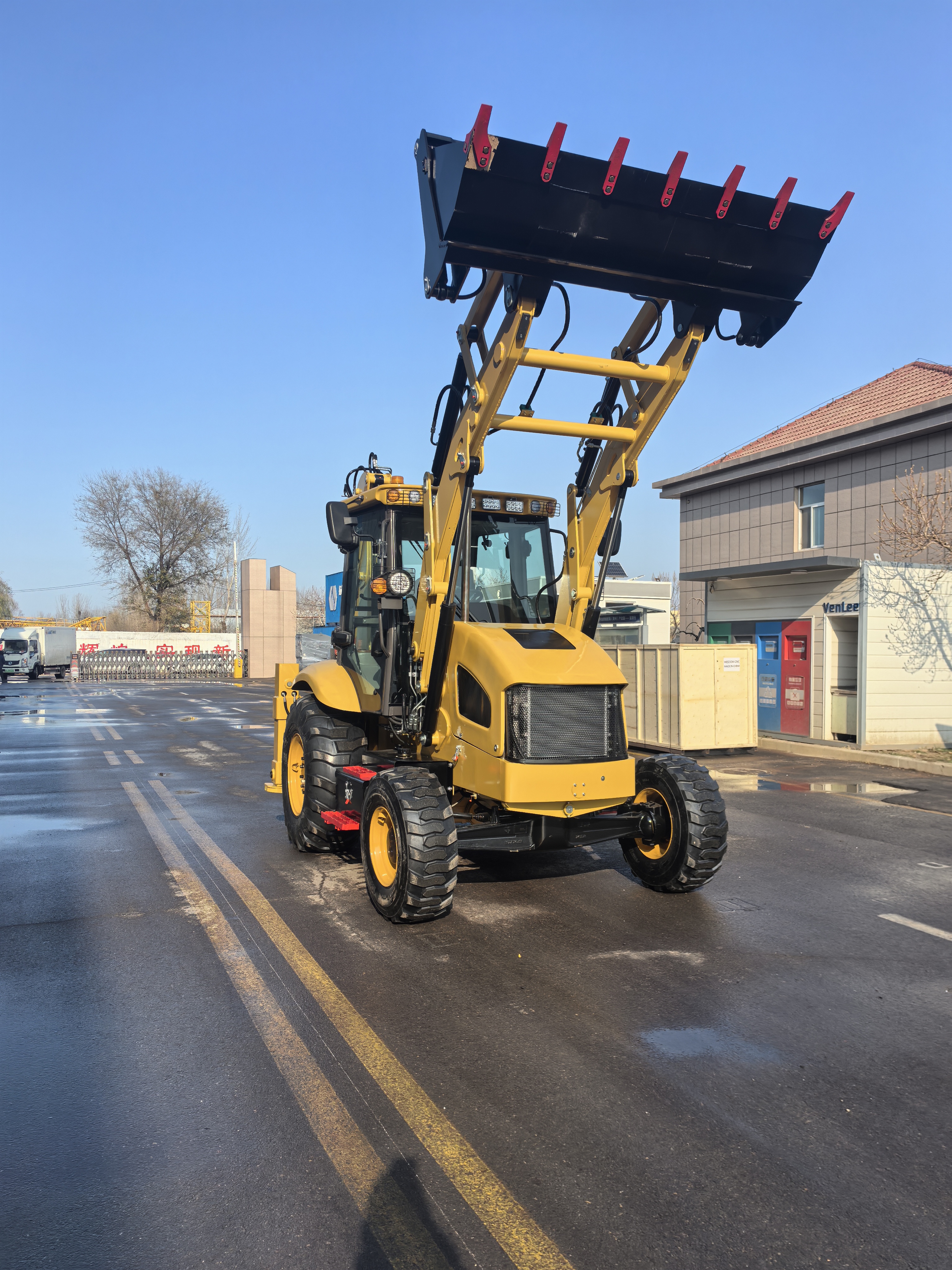

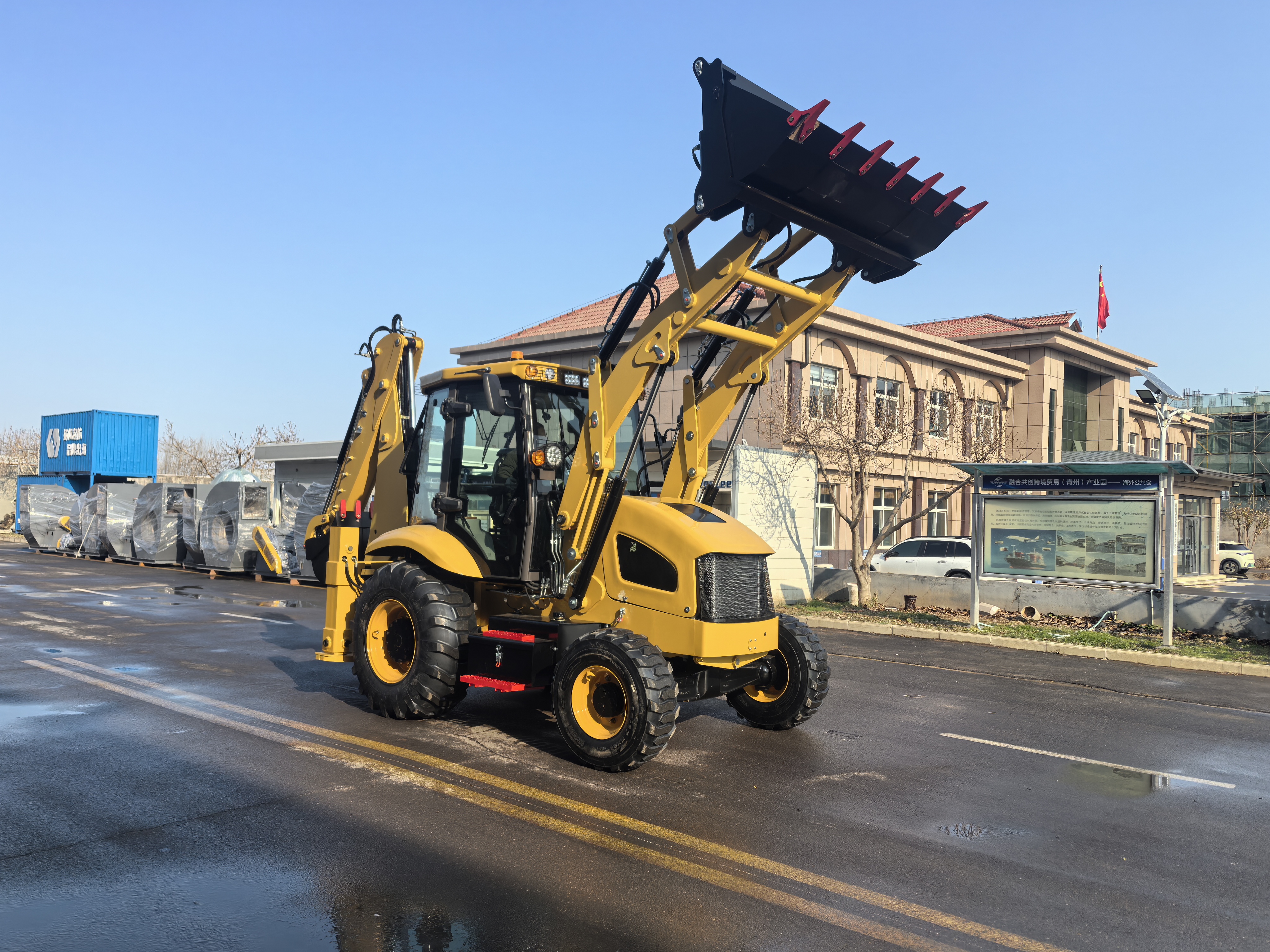

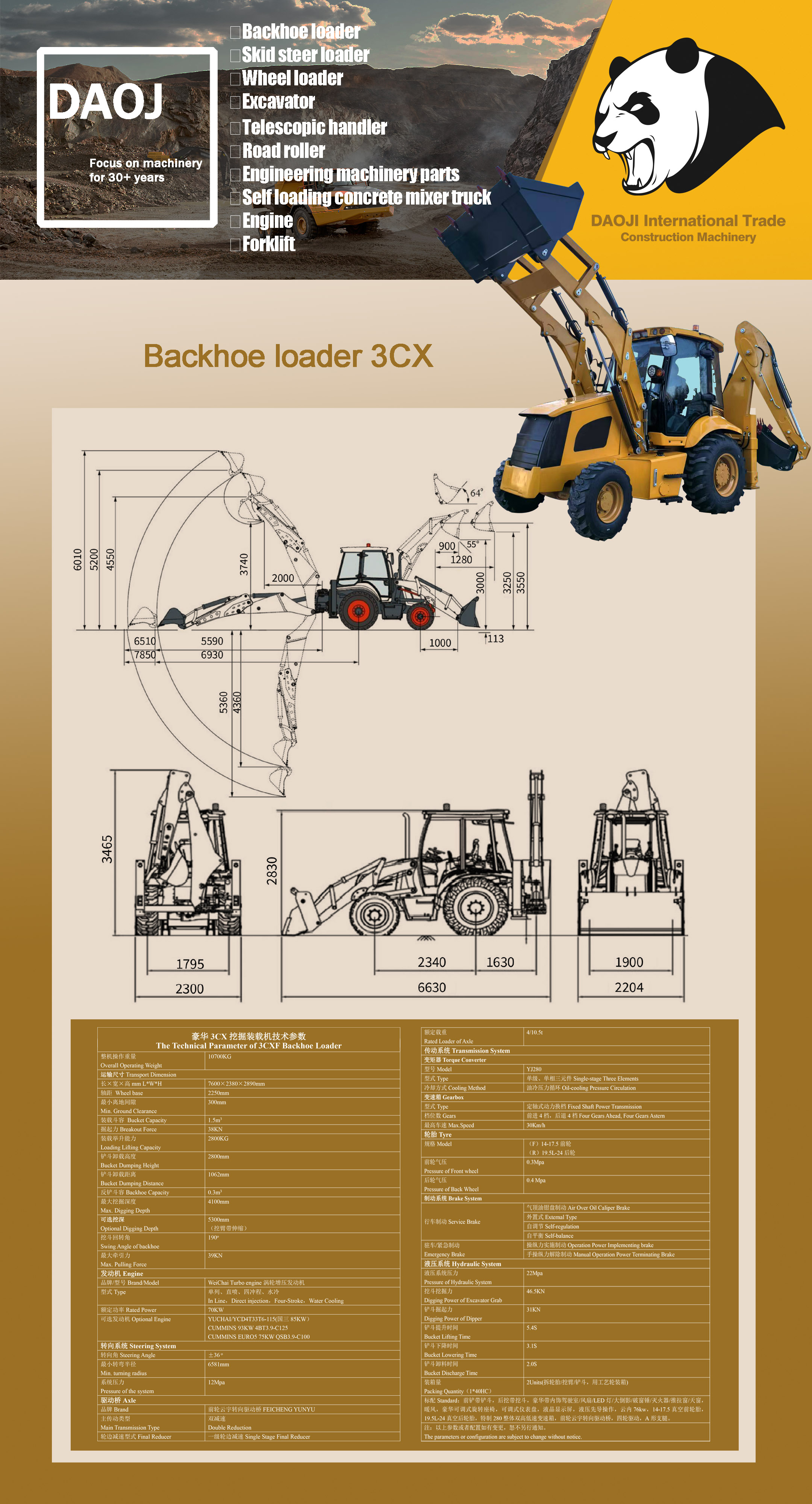

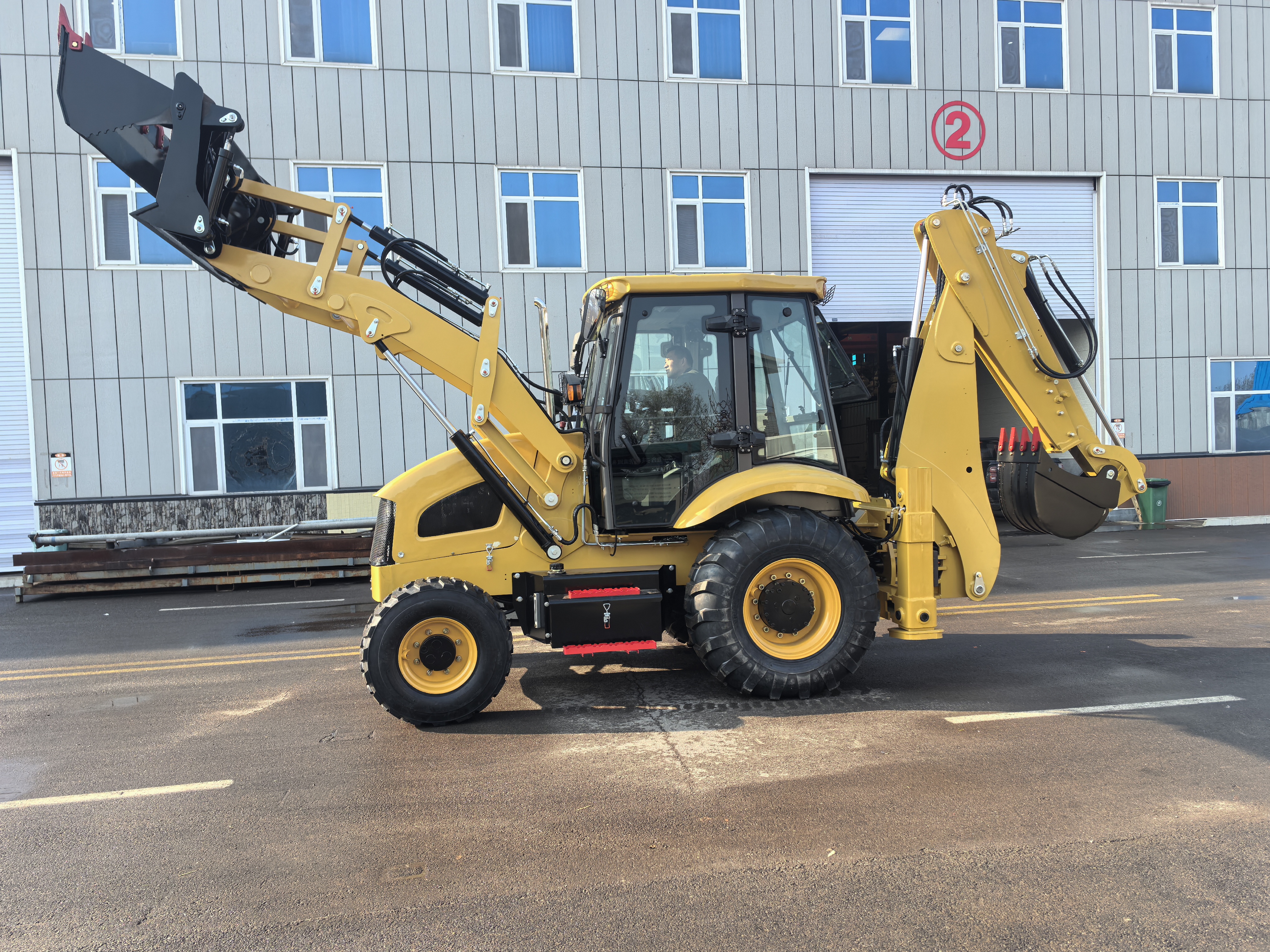

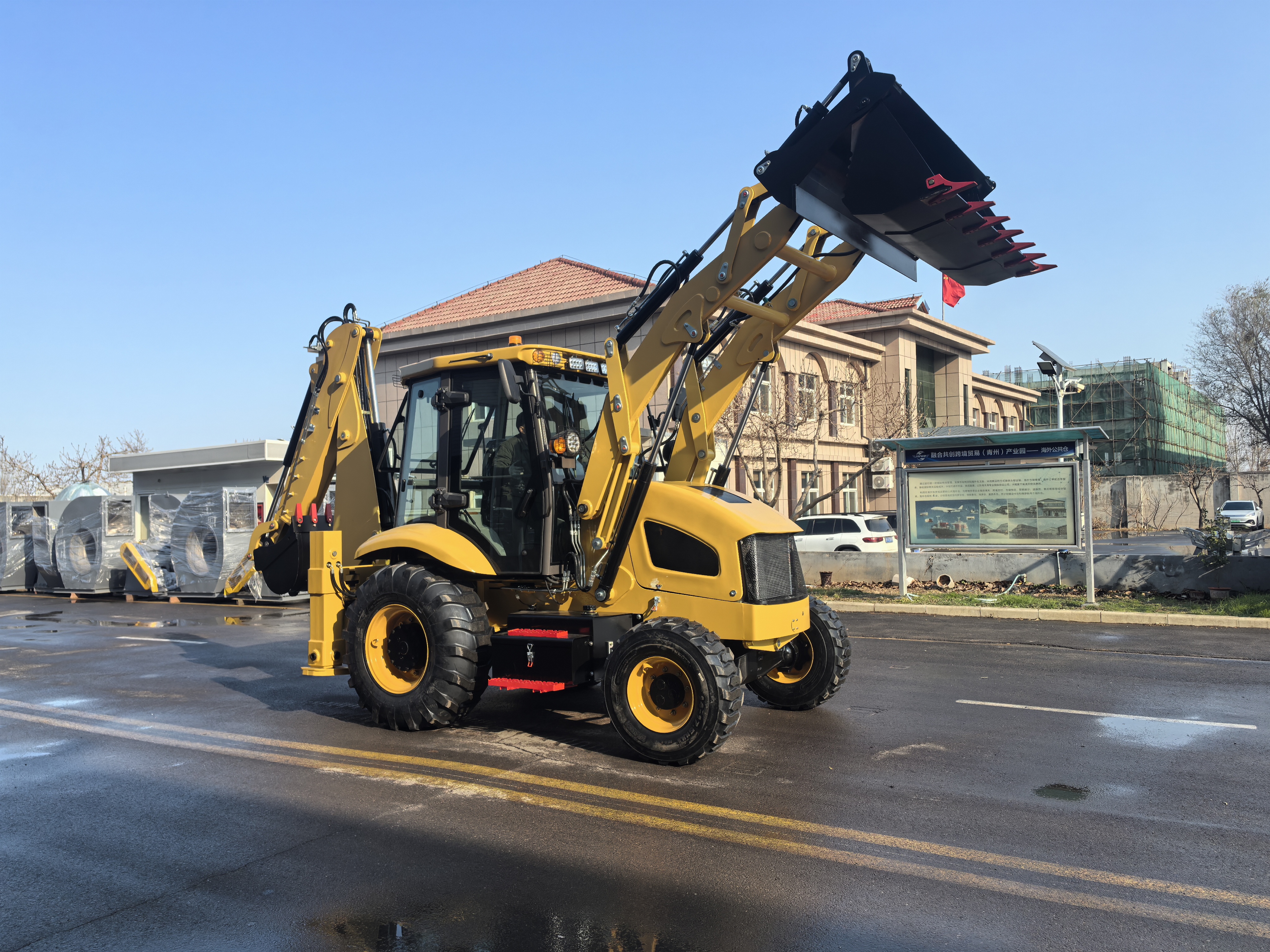

3CX

1. Total operating weight: 10700KG

2. Length * width * height: 7600×2380×2890mm

3. Wheelbase: 2250mm

4. Minimum ground clearance: 300mm

5. Bucket capacity: 1.5m³

6. Rising force: 38kN

7. Loading lifting capacity: 2800kg

8. Bucket unloading height: 2800mm

9. Bucket dumping distance: 1062mm

10. Backhoe capacity: 0.3 cubic meters

11. Maximum digging depth: 4100mm

12. Backhoe rotation angle: 190°

13. Maximum pulling force: 39kN

14. Engine brand/model: Yunnei

15. Engine type: in-line, direct injection, four-stroke, water-cooled

16. Engine rated power: 76kW

17. Steering system steering angle: ±36 °

18. Minimum turning radius of steering system: 6581 mm

19. Steering system pressure: 12 MPa

20. Torque converter type: single-stage three-element

21. Torque converter cooling method: oil-cooled pressure circulation

22. Transmission type: fixed-axis power transmission

23. Transmission gear: 2 forward gears, 2 reverse gears

24. Maximum speed: 30 km/h

25. Tire model: (F) 14-17.5 front wheel

(R) 19.5L-24 rear wheel

26. Service brake: air-top oil caliper brake, external, self-adjusting, self-balancing

27. Emergency brake: braking by operating force, releasing by manual operating force

28. Hydraulic system pressure: 22 MPa

29. Excavator grab digging force: 46.5 kN

30. Beidou digging force: 31 kN

31. Packing quantity (1*40 HC): 2 (remove tires/excavator arms/buckets and pack with process wheels)

32. Standard configuration: front shovel with bucket, rear shovel with bucket, luxury interior cab/fan/LED lights/large reflectors/window breaker/fire extinguisher/sliding window/skylight, heater, luxury adjustable swivel seat, adjustable instrument panel, LCD display, hydraulic pilot operation, Yunneng 76KW engine, 14-17.5 vacuum front tire, 19.5L-24 vacuum rear tire, special 280 integral dual high and low speed gearbox, A-type outrigger.
